| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach |
| Model Number: | AE-29003A |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | Component A: 18kg/barrel, Component B: 1.5kg/barrel or 2.0kg/barrel |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 10,000 tons per year |
| Resin Type: | Waterborne Modified Epoxy Resin | Curing Agent Type: | Polyamine Curing Agent |
|---|---|---|---|
| Mixing Proportion (Weight): | Component A:B = 6:1 | Mixing Proportion (Volume): | Component A:B = 4.5:1 |
| Applicable Substrate: | Cast Iron, Galvanized Sheet, Etc. | Application: | Drive Shafts, Shock Absorbers, Steering Columns, Etc. |
| Highlight: | Two Component Epoxy Water Based Paint,Anti Corrosion Epoxy Water Based Paint |
||

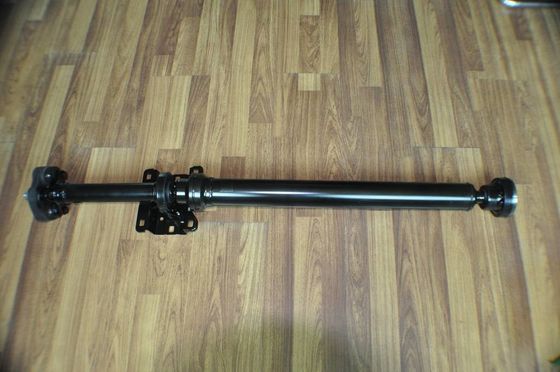

Two-component Epoxy Water-based Paint for Transmission Shaft Anti-corrosion Protection
◎Introduction
AE-29003A is composed of water-based modified epoxy resin, polyamine curing agent, deionized water, water-based additives, co-solvents, environmental protection pigments, fillers, etc.
It is widely used in the coating of the surface of metal substrates used in transmission shafts, shock absorbers, steering columns and other products. It plays a very good role in decoration and anti-corrosion protection. It is suitable for manual spraying and DISC electrostatic spraying.
◎Features
No irritating smell.
It meets the DISC electrostatic spraying process and has good construction adaptability.
After curing, the paint film has excellent abrasion resistance, stacking resistance, neutral salt spray, impact resistance and chemical resistance.
The products meet the standards of toxic and harmful substances in auto parts.
◎Film Properties:
| Test Item | Result | |
| Drying time (25℃) |
Surface dry time: 1h; |
Fully cured in 7 days |
| Using drier: 80-90℃×30min | ||
| Adhesive (scratch) | Grade 1 | |
| Pencil hardness (HB) | H | |
| Impact (50kg•cm) | Pass | |
| Flexibility | 1mm | |
| Corrosion resistance | >360h | |
| Water resistance | >300h | |
◎ Instructions
| Composition |
Component A (black liquid) Specific gravity 1.33±0.05 |
| Mix proportion |
12:1 (Weight ratio) |
| Mass solid content (105℃×3h) | 45±5% |
| Mix method | After mixing component A, add component B and fully mix evenly |
| Coating thickness |
Dry film thickness 30-50μm; |
| Diluent | Deionized water, add about 0~10% |
| Curing period(25℃) | -- |
| Pot-life(25℃) | 2h |
| Recoating interval |
Minimum 4h |
| Pretreatment of substrate | When directly applied to the surface of the substrate, the substrate should be treated with phosphating, vitrification, and silanization, and it must be clean, dry, rust-free, and oil-free. |
| Substrate temperature | Substrate temperature should be higher than dew point by 3℃ |
| Construction Conditions |
The construction temperature is 10-35℃, the humidity is 30-75%, and the ventilation conditions are good. |
| Process | Substrate - Rust removal, degreasing, dust removal, phosphating, silane, vitrification treatment - Moisture drying - Spraying water-based paint - Leveling at room temperature for 5-10 minutes - Gradient heating, 90-100 degrees 30 minute artifact - Off-line packaging |
| Coating method |
DISC electrostatic spraying: |
| Applicable substrate: | Suitable for cast iron, galvanized sheet, carbon steel, cast aluminum and other metal substrates |
| Clean | Wash tools and equipment with clean water immediately after construction |
| Storage life | The storage period of the paint is six months, please be sure to use it up within the storage period, so as not to affect the quality; the paint (including curing agent, thinner) should be sealed and stored in a cool place, waterproof, leakproof, sunscreen, high temperature, and away from fire. |
| Package |
Component A: 18kg/barrel |
