| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS, ISO90001, ISO14000, Reach |
| Model Number: | AE-29003A |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | Component A: 18kg/barrel, Component B: 1.5kg/barrel or 2.0kg/barrel |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 10,000 tons per year |
| Resin Type: | Waterborne Modified Epoxy Resin | Curing Agent Type: | Polyamine Curing Agent |
|---|---|---|---|
| Mixing Proportion (Weight): | Component A:B = 6:1 | Mixing Proportion (Volume): | Component A:B = 4.5:1 |
| Applicable Substrate: | Cast Iron, Galvanized Sheet, Etc. | Application: | Drive Shafts, Shock Absorbers, Steering Columns, Etc. |
| Highlight: | Epoxy Water Paint For Shock Absorber,Epoxy Water Paint Two Component |
||
Two-component Epoxy Water Paint Liquid Coatings for Automobile Shock Absorber
◎Introduction
AE-29003A is composed of water-based modified epoxy resin, polyamine curing agent, deionized water, water-based additives, co-solvents, environmental protection pigments, fillers, etc.

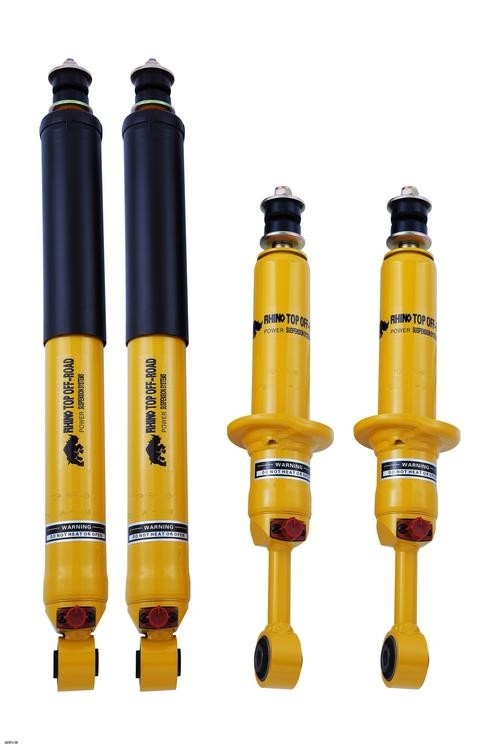

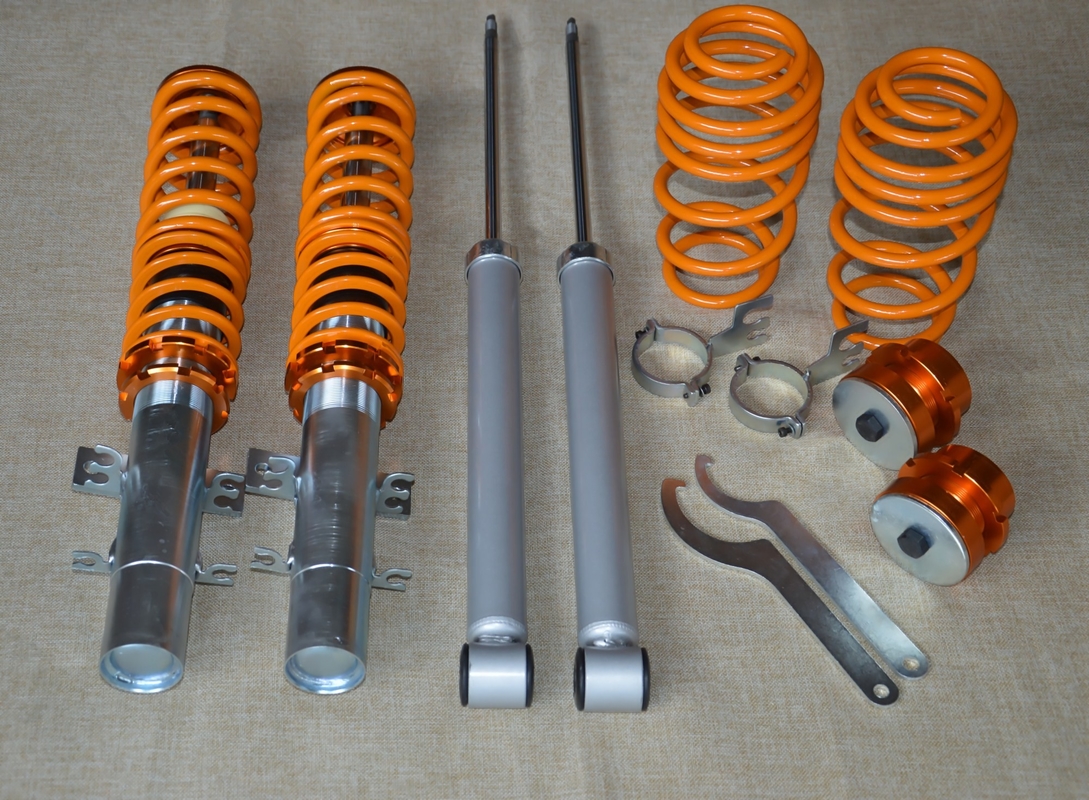

It is widely used in the coating of the surface of metal substrates used in transmission shafts, shock absorbers, steering columns and other products. It plays a very good role in decoration and anti-corrosion protection. It is suitable for manual spraying and DISC electrostatic spraying.
Waterborne epoxy coatings have many advantages:
1. Excellent adhesion
2. Variety diversity and wide adaptability
3. Antirust performance
4. Excellent resistance
5. High security
6. Environmentally friendly
◎Features
No irritating smell.
It meets the DISC electrostatic spraying process and has good construction adaptability.
After curing, the paint film has excellent abrasion resistance, stacking resistance, neutral salt spray, impact resistance and chemical resistance.
The products meet the standards of toxic and harmful substances in auto parts.
◎Film Properties:
| Test Item | Result | |
| Drying time (25℃) |
Surface dry time: 1h; |
Fully cured in 7 days |
| Using drier: 80-90℃×30min | ||
| Adhesive (scratch) | Grade 1 | |
| Pencil hardness (HB) | H | |
| Impact (50kg•cm) | Pass | |
| Flexibility | 1mm | |
| Corrosion resistance | >360h | |
| Water resistance | >300h | |
◎ Instructions
| Composition | Component A (black liquid) | Specific gravity 1.33±0.05 |
| Component B (brown liquid) | Specific gravity 1.01±0.03 | |
| Mix proportion | Weight ratio | Component A:B = 6:1 |
| Volume ratio | Component A:B = 4.5:1 | |
| Mass solid content (105℃×3h) | 45±5% | |
| Mix method | After mixing component A, add component B and fully mix evenly | |
| Coating thickness | Dry film thickness | 30-50μm |
| Wet film thickness | 180μm | |
| Diluent | Deionized water, add about 0~10% | |
| Curing period(25℃) | -- | |
| Pot-life(25℃) | 2h | |
| Recoating interval |
Minimum 4h Maximum 48h |
|
| Pretreatment of substrate | When directly applied to the surface of the substrate, the substrate should be treated with phosphating, vitrification, and silanization, and it must be clean, dry, rust-free, and oil-free. | |
| Substrate temperature | Substrate temperature should be higher than dew point by 3℃ | |
| Construction Conditions |
The construction temperature is 10-35℃, the humidity is 30-75%, and the ventilation conditions are good. For construction in winter, it is recommended to preheat the workpiece and use hot air circulation to increase the surface temperature of the workpiece. Infrared heating can be used. |
|
| Process | Substrate - Rust removal, degreasing, dust removal, phosphating, silane, vitrification treatment - Moisture drying - Spraying water-based paint - Leveling at room temperature for 5-10 minutes - Gradient heating, 90-100 degrees 30 minute artifact - Off-line packaging | |
| Coating method | DISC electrostatic spraying: |
Spraying voltage: 50 ~ 60 kV Spraying pressure: 0.35-0.45Mpa Construction viscosity: 16-20s (25-30℃) |
| Hand spraying: | Construction viscosity: 35-43s (25-30℃) | |
| Applicable substrate: | Suitable for cast iron, galvanized sheet, carbon steel, cast aluminum and other metal substrates | |
| Clean | Wash tools and equipment with clean water immediately after construction | |
| Storage life | The storage period of the paint is six months, please be sure to use it up within the storage period, so as not to affect the quality; the paint (including curing agent, thinner) should be sealed and stored in a cool place, waterproof, leakproof, sunscreen, high temperature, and away from fire . | |
| Package |
Component A: 18kg/barrel Component B: 3.0kg/barrel |
|
