| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH8003&NH8505 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Product Type: | Dry Mixed Polyester Resins | Cure Type: | TGIC Curing System |
|---|---|---|---|
| Ratio: | 90/10 & 95/5 | Cure Time: | 200℃×15min |
| Acid Number (mgKOH/g): | 48～54 & 19～24 | Glass Transition Temp.( ℃): | ~68 & ~62 |
| Properties: | Super Durable, Excellent Boiling Resistance | Application: | For Outdoor Semi-gloss Powder Coatings |
| Highlight: | Low Gloss Blended Polyester Resin,Outdoor Blended Polyester Resin |
||

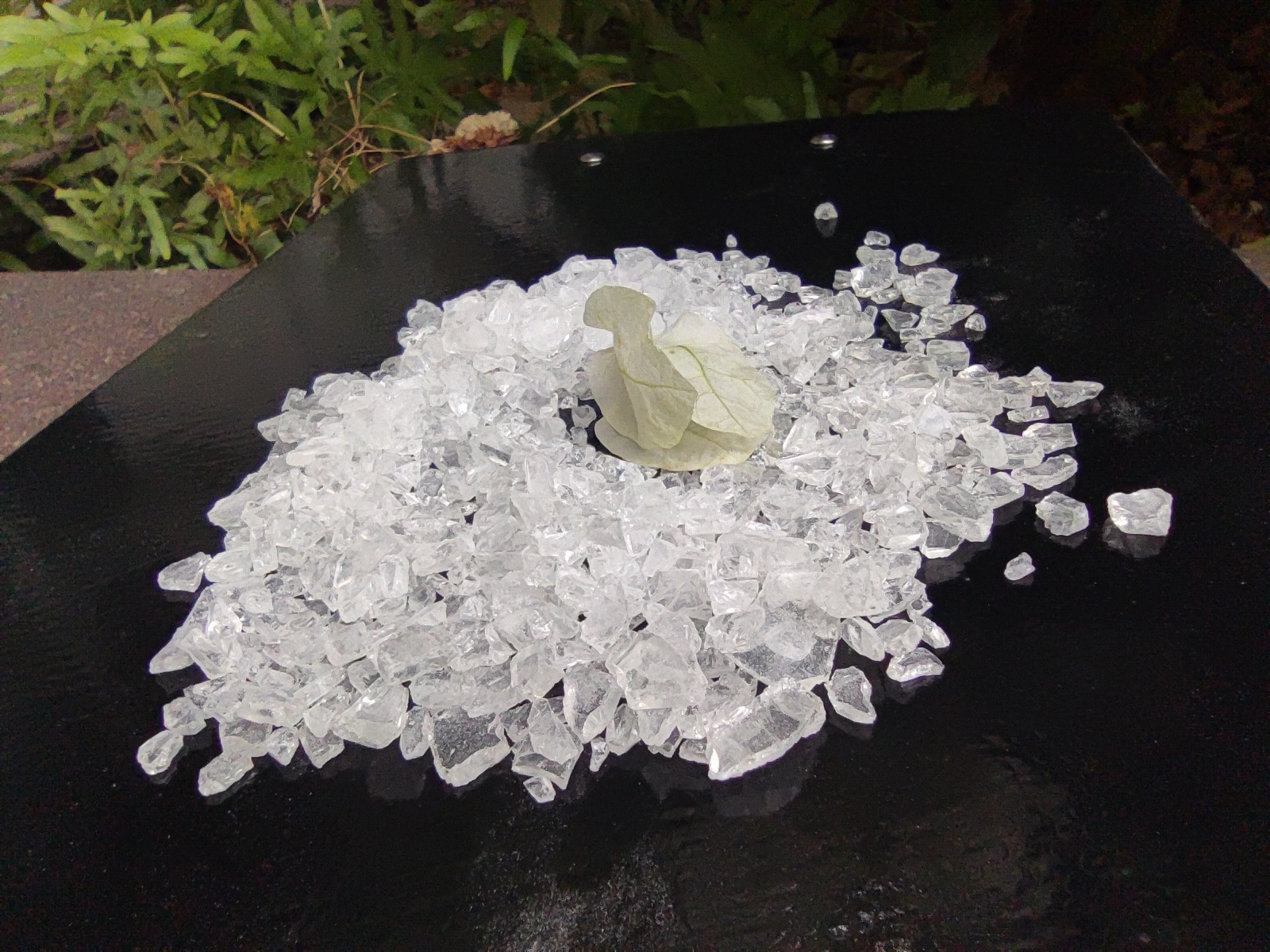

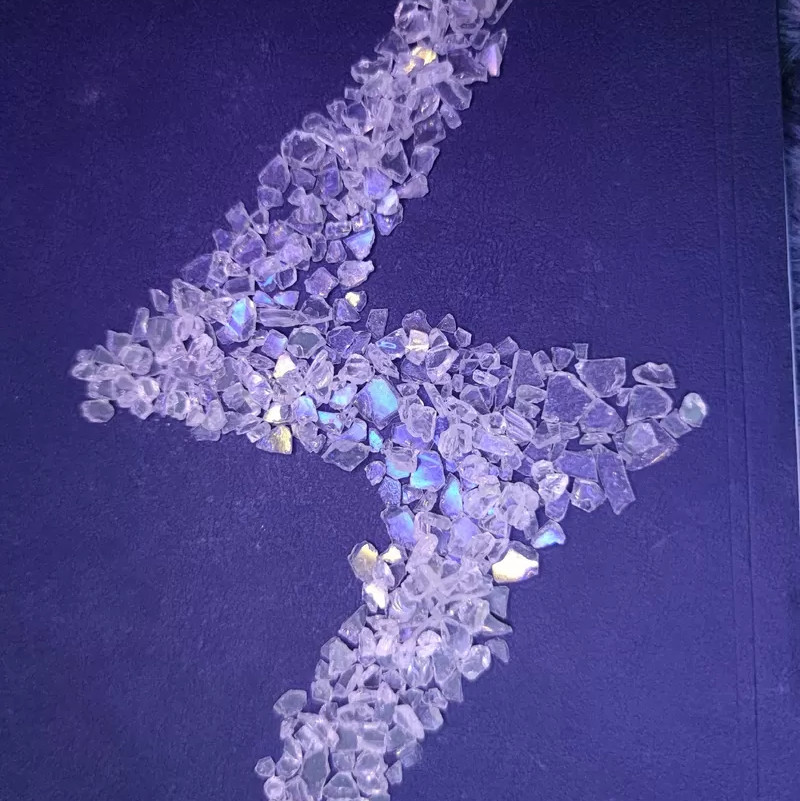

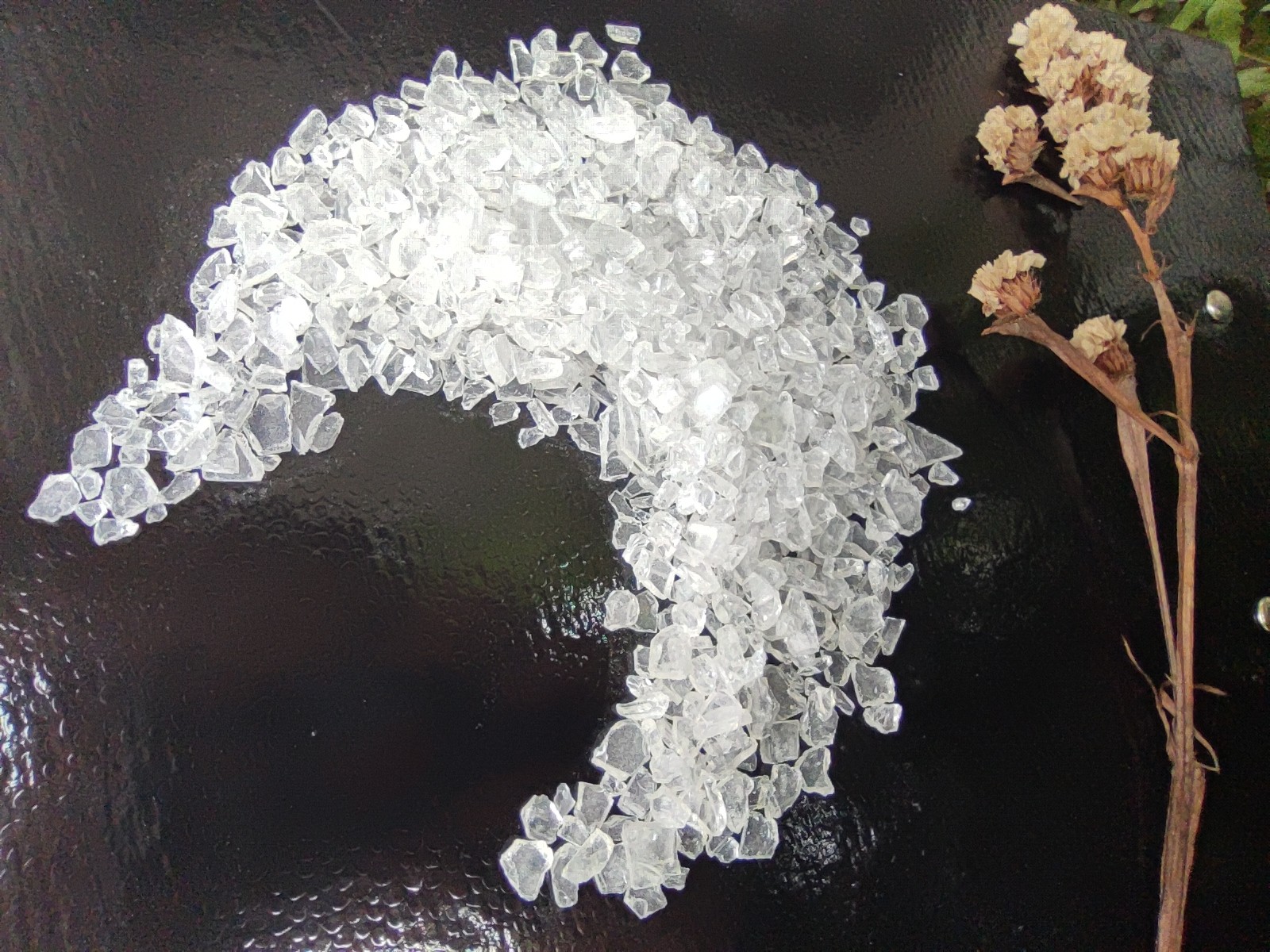

Extra Durabl Blended Polyester Resin for Outdoor Low Gloss Powder Coatings
Introduction
NH8003 & NH8505 are polyester resins with high and low acid value respectively, which are used in polyester/TGIC powder coating system. NH-8003 and NH-8505 are respectively made into powder and dry mixed to produce outdoor semi-gloss powder coatings.
With its advantages of economy, environmental protection, high efficiency, and excellent performance, powder coatings are gradually replacing organic solvent-based coatings and become an important development direction in the coatings industry, which has maintained a rapid growth rate. Polyester powder coatings are widely used in the field of painting due to their excellent durability, decoration, and processability.
Polyester powder coatings use polyester resin as the main film-forming material, add TGIC, HAA, epoxy resin, etc. as curing agents, supplemented by leveling agents, additives, pigment fillers, and other components, after mixing, melting and other processes processed into powder coating. The powder coating is electrostatically sprayed on the workpiece. At a certain temperature and time, the resin is melted and cross-linked and then solidified into a smooth, hard, and flexible coating. The cured coating film will not be softened again due to the increase in temperature, and the coating is solvent-free, pollution-free, and 100% film-forming, which not only saves resources but also saves energy.
Basic Features
Good mechanical properties
Excellent weather resistance
Excellent boiling resistance
Recommend Formulation:
| Formulation | NH8003 | NH8505 | TGIC | TiO2 R930 | BaSO4 (44HB) | PV-88 | Benzion |
| I | 270 | — | 30 | 75 | 125 | 3 | 1.5 |
| II | — | 285 | 15 | 75 | 125 | 3 | 1.5 |
Specifications I
| Items | NH8003 | NH8606 |
| Appearance | Light-colored flake | Light-colored flake |
| Acid Number (mgKOH/g) | 48～54 | 19～24 |
| Softening Point (℃) | 105～115 | 103～113 |
| Glass Transition Temp. (℃) | ～68 | ～62 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 4000~6000 | 530~6300 |
| Reactivity at 180℃ (s, 10, 4% TGIC) | 60-120 | 250-360 |
| Curing Requirement | 200℃×15min | |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag | |
Specifications II
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Blending Extrude I and II with weight ratio 1:1 before grinding. | ||
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gloss (60°) | ≤35% |
| Bending (φ2mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥H | |
| Impact (50cm) | Pass | |
Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.

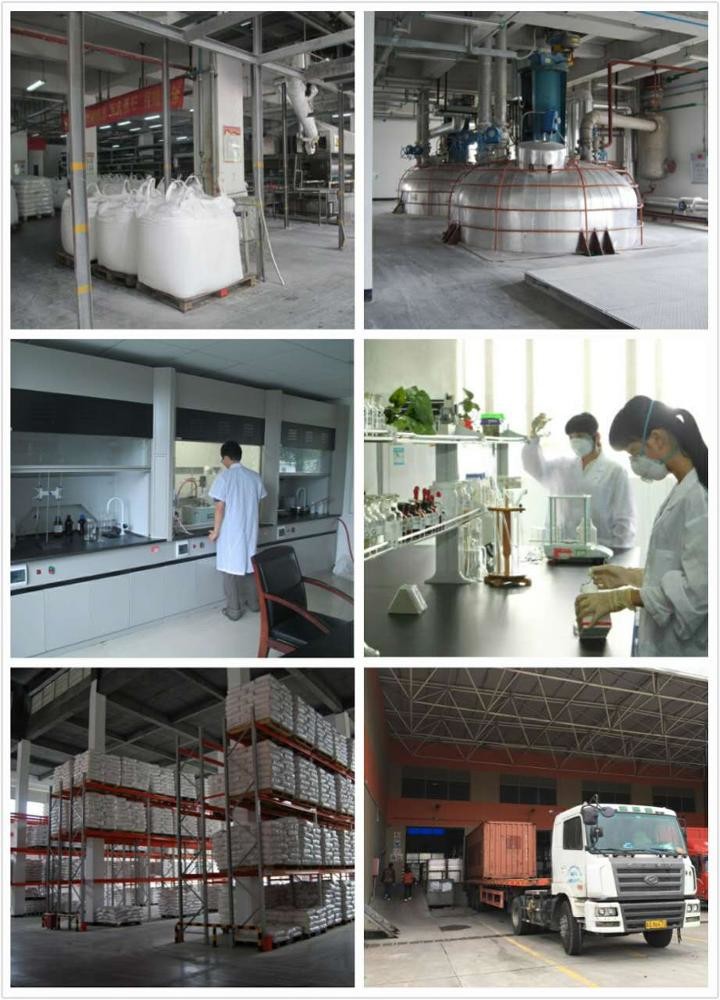

Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST, etc.
