Low Gloss 70/30 Polyester Epoxy Resin For Gas Oven Powder Coatings With TMA Free

Basic Information
Place of Origin: China
Brand Name: KINTE
Certification: Qualicoat, ISO14000, ISO90001, Reach, ROHS
Model Number: HH2782GT
Minimum Order Quantity: 1000kg
Price: Negotiable

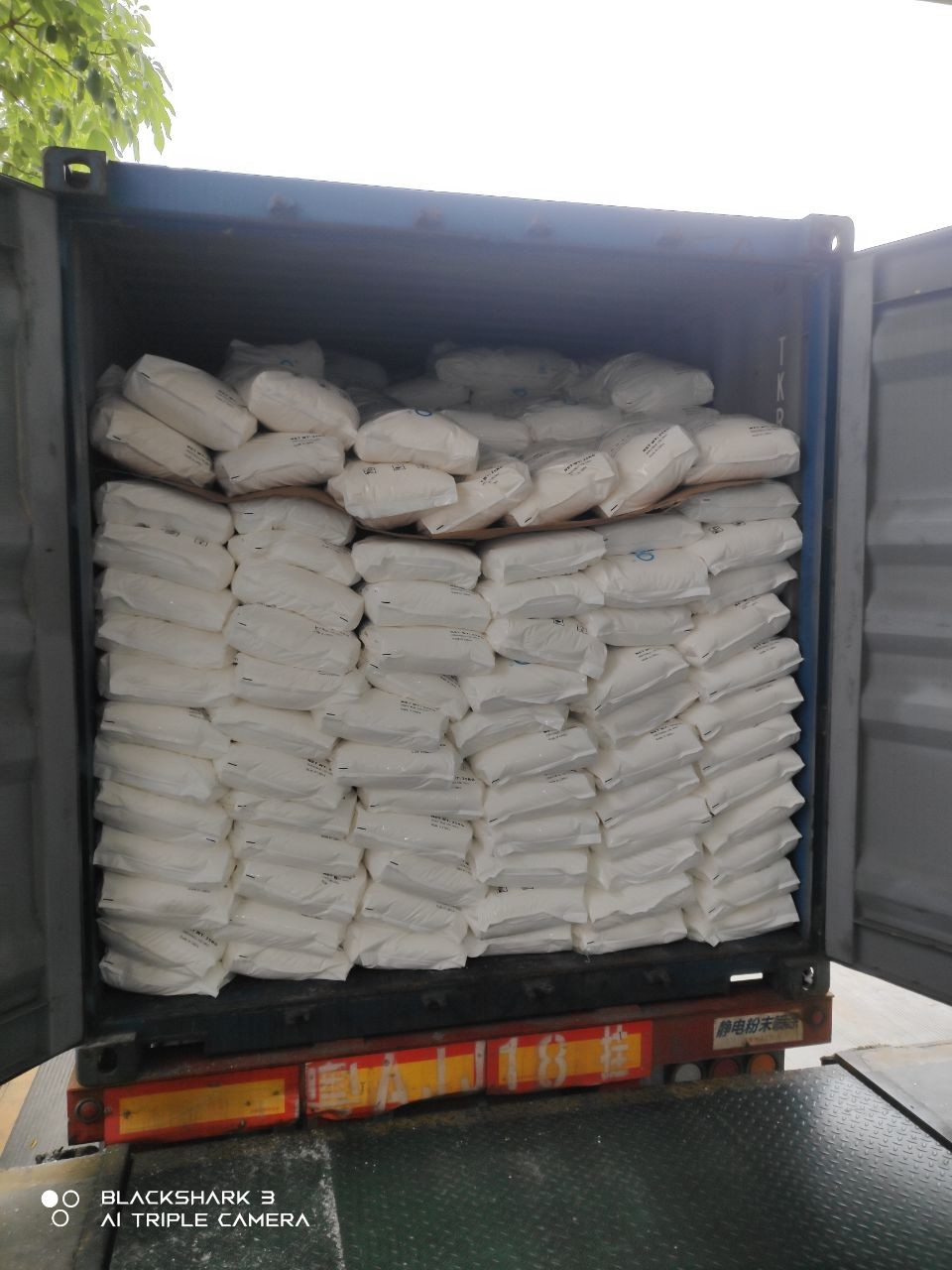

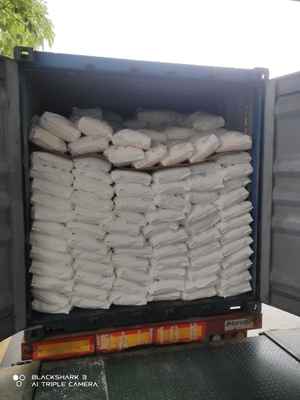

Packaging Details: 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP
Delivery Time: 10 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 80,000 tons per year
Cured System: 70/30 Hybrid System Cured Condition: 180℃×15min / 200℃×10min
Acid Value (mgKOH/g): 29-34 Viscosity (200℃, Cone/plate, MPa·s): 5800~7000
Softening Point: 100~110℃ Glass Transition Temperature: ~60℃
Properties: TMA Free And Excellent Gas Oven Stability Application: Suitable For Low Gloss Powder Coatings
Highlight:

Low Gloss 70/30 Polyester Epoxy Resin

,

Polyester Epoxy Resin For Gas Oven

Low Gloss 70/30 Polyester Epoxy Resin For Gas Oven Powder Coatings with TMA free


◎Introduction

HH2782GT is tribo version of HH2782G, it is a carboxyl polyester resin designed for 70/30 hybrid powder coatings with excellent gas oven stability. Can be used with B68 for low gloss with good performance.
Models with a G indicate powder coatings made with this polyester resin that is suitable for direct fired furnace curing.


Basic Features

Outstanding mechanical properties
Good leveling
Good storage stability
Good Chemical resistance
TMA free


Recommend Formulation:

HH2782GT—014U

HH2782GTEpoxy resinTIO2BaSO4Leveling AgentBenzoin701
2109010290422.5



Specifications:

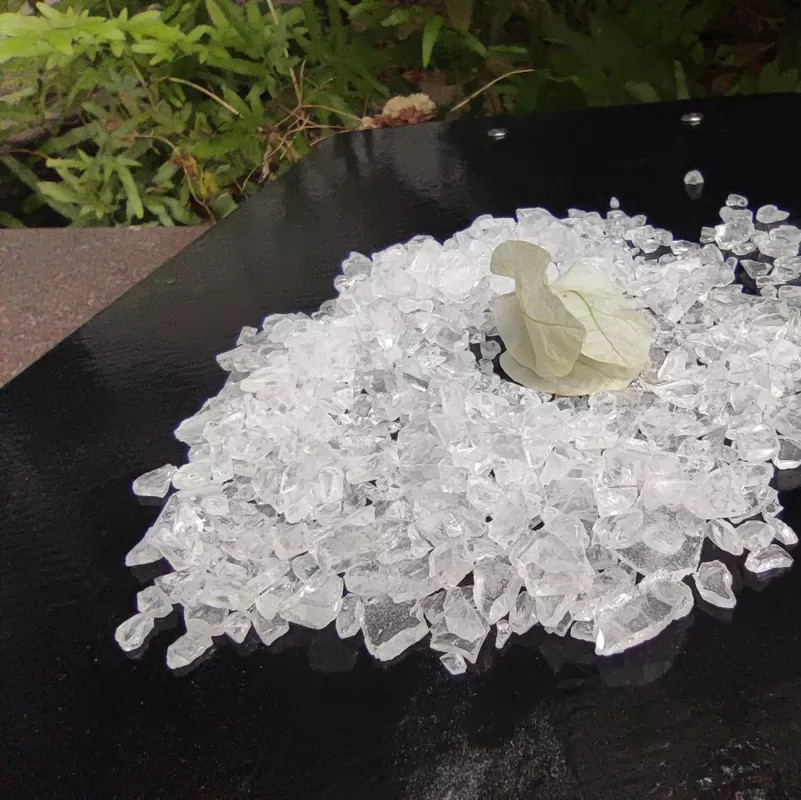

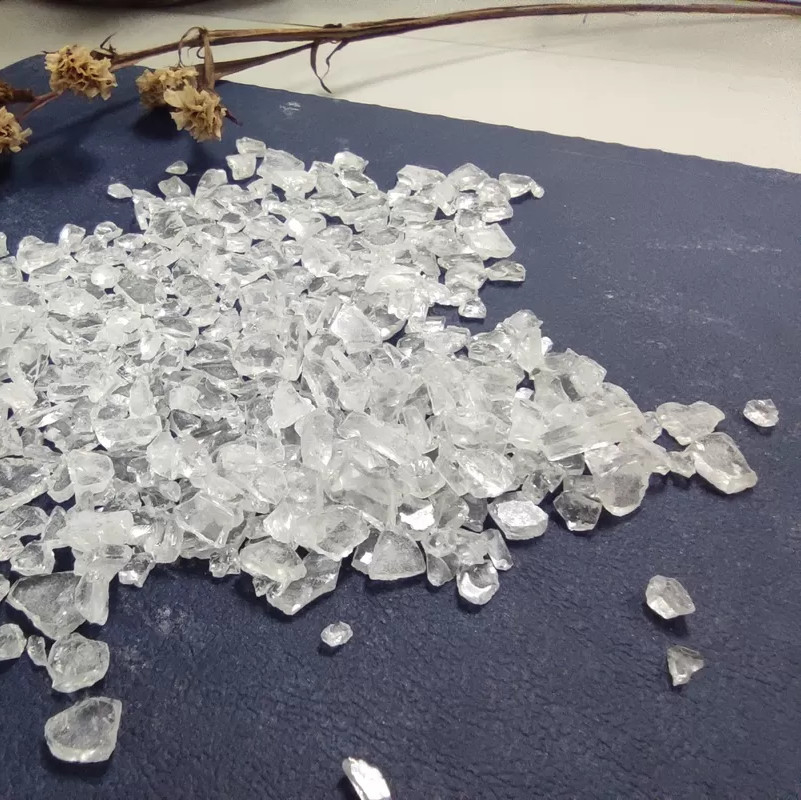

Appearancewhite or light yellow transparent flakes
Color (50% DMF)Max: 2
Acid Value (mgKOH/g)29~34
Softening Point (℃)100~110
Glass Transition Temp. (℃)

~60

Melting Viscosity (200℃, cone/plate, mPa·s)5800~7000
Reactivity at 180℃ (s, 30% Epoxy)180~280
Curing Requirement

180℃×15min / 200℃×10min

PackagingPE Bags, Net Weight 25kg ± 0.1kg / bag



Specifications II:


Extrusion ConditionTwo-screw Extruder
Zone I: 90~110℃Zone II: 110~120℃
Speed of Revolution500~1200rpm
Fineness of Powder<100μm
Application ConditionElectrostatic Spraying With40~70KV
Coating Film Thickness50~100μm
Degreased Cold-rolled Steel0.5mm
Film PropertiesGel Time (180℃, sec)200~300
Horizontal Flow (180℃, mm)24~28
Gloss (60°)≥90%
Bending (φ1mm)Pass
Adhesive (1mm, grade)0
Pencil Hardness

1H

Impact (50cm)Pass



Remarks:

All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).


Company Profile:

Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
In 2017, the new production base with 80000 tons annual capacity was put into construction in Dongguan, Guangdong, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development.


Low Gloss 70/30 Polyester Epoxy Resin For Gas Oven Powder Coatings With TMA Free 0




We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification and QUALICOAT Certificate. Due to the excellent and stable quality, our products always enjoy high reputation at home and oversea, and were sold to more than 30 countries.



Low Gloss 70/30 Polyester Epoxy Resin For Gas Oven Powder Coatings With TMA Free 0




Polyester resin branch was founded in 2000, now there are two factories (DongGuan factory and TaiXing Factory) with annual production capacity over 80,000 tons. Our clients include many top-tier powder manufacturers in the world such as AKZO, PPG, TIGER, PROTECH, NIPPON, OXYPLAST, JOTUN, SHERWIN, VALSPAR, SINTERPLAST etc.

Powder coating branch was founded in 1992, and now there are two factories (HuaDu factory and WuHan factory) with annual production capacity over 25,000 tons. And we have cooperated with many famous clients such as Gree, Pansonic, HITACHI, IKEA, Mitsubishi, Walmart, HUAWEI, EMERSON, Hisence, Dicastal, BYD, AAG etc.

Low Gloss 70/30 Polyester Epoxy Resin For Gas Oven Powder Coatings With TMA Free 2
