| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2582AT |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure System: | 50/50 Polyester/Epoxy | Cure Condition: | 200℃×10min Or 180℃×15min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 65-75 | Viscosity (mPa·s/200℃): | 2800±1000 |
| Softening Point(℃): | 98～108 | Glass Transition Temp.(℃): | ～ 59 |
| Properties: | Excellent Mechanical Properties And Outstanding Chemical Resistance | Application: | Suitable For Friction Gun Spraying |
| Highlight: | 50/50 Hybrid Polyester Epoxy Resin,Tribo Version Polyester Epoxy Resin |
||
50/50 Hybrid Polyester Epoxy Resin With Good Leveling for Tribo Version Powder Coatings
◎Introduction
HH2582AT is a saturated polyester resin, which is the friction gun version of HH2582A. It is mainly used for a 50/50 polyester/epoxy mixed powder coating system and is suitable for friction gun spraying.
The working principle of friction gun spraying is to use frictional electrification to charge the powder. The charge is generated by the collision, friction, contact, and clutching between the powder and the special polymer material and nylon in the gun wall. The driving force is airflow.
◎Basic Features
Suitable for friction gun spraying
Excellent mechanical properties
Outstanding chemical resistance
Good leveling
Good storage stability
◎Recommend Formulation:
| HH2582AT | E-12 | Filler ＆ Pigment | Leveling agent | Benzoin | 701 |
| 300 | 300 | 383 | 8 | 4 | 5 |
◎Specifications I:
| Appearance | White or pale yellow transparent flakes |
| Acid Number (mgKOH/g) | 65～75 |
| Softening Point (℃) | 98～108 |
| Glass Transition Temp. (℃) | ～59 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 2800±1000 |
| Reactivity at 180℃ (s, 50% E-12) | 200±40 |
| Curing Requirement | 200℃×10min or 180℃×15min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Jacket temperature | 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 200~320 |
| Horizontal Flow (180℃, mm) | 26~30 | |
| Gloss (60°) | ≥90% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti-gas burners (G), tribo gun (T), and anti-blooming (F).
◎Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), listed on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China’s technological development of environmentally friendly coatings as well as polyester resins for powder coatings!

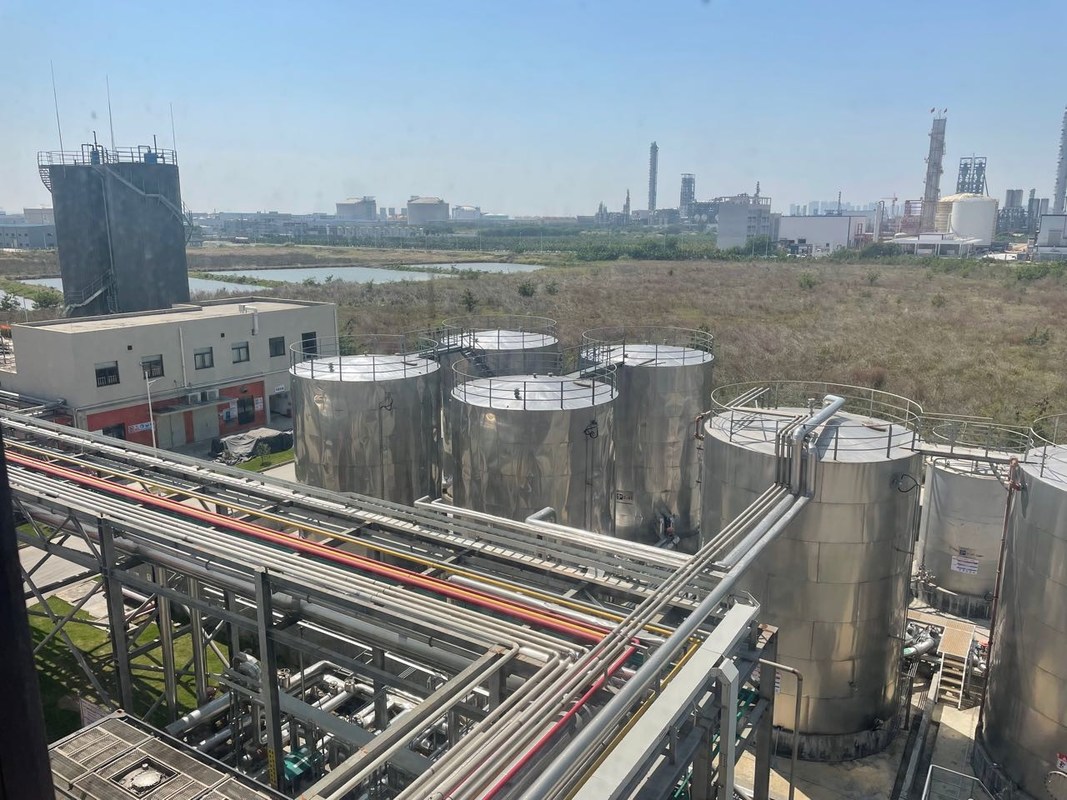

In 2017, the new production base with 80000 tons annual capacity was put into construction in Dongguan, Guangdong, and the annual production capacity reached 120000 tons by the end of 2020, opening the road to global diversified development.
