| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH3396 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Good Blooming Resistance | Cure Ratio: | 93/7 TGIC System |
|---|---|---|---|
| Cure Condition: | 200℃×10min | Acid Number (mgKOH/g): | 30-36 |
| Viscosity (mPa·s/200℃): | 4500～6500 | Reactivity: | 100～240 |
| Glass Transition Temp.(℃): | ～ 63 | Applications: | For Polyester/ TGIC System Powder Coatings |
| Highlight: | 93/7 Saturated TGIC Polyester Resin,TGIC Polyester Resin Blooming Resistance |
||
93/7 Saturated TGIC Polyester Resin With Good Blooming Resistance
◎Introduction
NH3396 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.
Powder coatings have the characteristics of solvent-free, simple construction, high utilization rate, and are growing rapidly in the global market. Matting powders have good decorative properties, and are the most widely used powder coatings for indoor decoration.
When the paint film is tested at 60 ° angle, the gloss above 90% is called high gloss, 60-90% is called flat gloss, 20-60% is called matte, and the gloss below 20% is called low gloss. The market demand for matting powder coatings is also growing. There are many ways to reduce the gloss, and the common way is to rely on the system of physical matting agent or semi chemical matting agent.
As a commonly used additive for powder coatings, matting agent is often very expensive. For products with the same gloss effect, polyester itself has a good extinction, which can determine the final cost performance ratio of the product.
◎Basic Features
Good blooming resistance.
Good outdoor durability.
Good flow
◎Recommend Formulation:
| NH3396 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 558 | 42 | 377 | 8 | 10 | 5 |
◎Specifications I

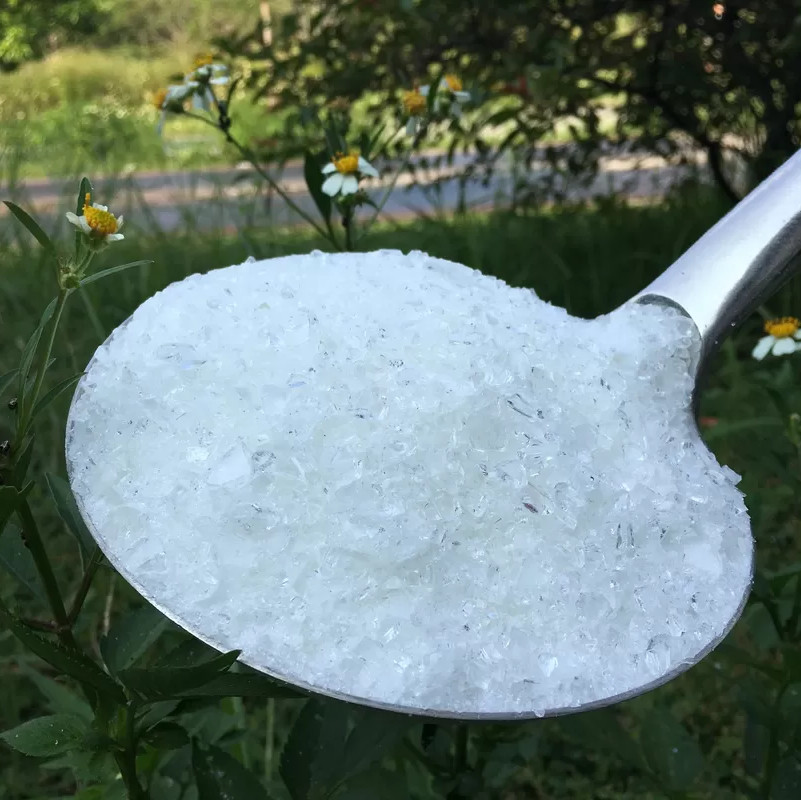

| Appearance | White or Light Yellow Transparent Flakes |
| Acid Number (mgKOH/g) | 30～36 |
| Glass Transition Temp. ( ℃) | ~ 63 |
| Melting Viscosity (ICI, mPa·s/200℃) | 4500～6500 |
| Reactivity at 180℃ (s, 7% TGIC) | 100～240 |
| Curing Requirement | 200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Specifications II:
| Extrusion Condition | Two-screw Extruder | |
Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 70~250 |
| Horizontal Flow (180℃, mm) | 24~28 | |
| Gloss (60°) | ≥85% | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◇More Codes:
| Code | Ratio | Cure Cycle | AV (mgKOH/g) | Viscosity (mPa.s/200ºC) | Tg (ºC) | Reactivity (s/180ºC) | Properties |
| NH3362 | 93/7 | 160ºC*15min | 31~36 | 3700~5300 | ~62 | 40-100 | For low bake powder coatings with excellent blooming resistance and outdoor durability, suitable for engineering machinery. |
| NH3363 | 93/7 | 160ºC*10min | 31~36 | 3700~5300 | ~60 | 40-100 | General purpose resin to be cured at 160ºC. Good flow, good outdoor durability and mechanical properties. |
| NH3365 | 93/7 | 160ºC*15min | 31~36 | 4500~6500 | ~63 | 80-180 | General purpose resin to be cured at 160ºC. Very good flow, excellent outdoor durability and mechanical properties. |
| NH3366 | 93/7 | 160ºC*15min | 31~36 | 4500~6500 | ~62 | 80-180 | For low bake powder coatings with excellent blooming resistance and outdoor durability, suitable for engineering machinery. |
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
