ROHS Approve 92/8 Saturated Polyester Resins , Polyester Based Resin For Color Coating

Basic Information
Place of Origin: CHINA
Brand Name: KINTE
Certification: ROHS,ISO90001,ISO14000,Reach,Qualicoat
Model Number: NH5266
Minimum Order Quantity: 500KG
Price: Negotiable
Packaging Details: 25kg/PE bag , 875KG/PALLET , 17,500KG/ 20GP
Delivery Time: 10 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 80,000tons/year
Specification: TGIC Cure Application: Manufacture Of Powder Coating
Advantage: Good At Deep Or Bright Color Powder Coating Property: Good Mechanical Properties,chemical Resistance,anti-yellowing,storage Stability
Rate: 92/8 Curing Condition: 200°C/10mins
Highlight:

92/8 Saturated Polyester Resins

,

ROHS Saturated Polyester Resins

,

ROHS polyester based resin

Super Durable TGIC Cured Polyester Resin NH5266 Good at Deep or Bright Color Powder Coating



 Applications:

NH5266 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system.

Suitable for deep or bright color powder coatings.



 Basic features:

Excellent anti-yellowing

Good leveling

Excellent storage stability

High weathering resistance



 Specifications:

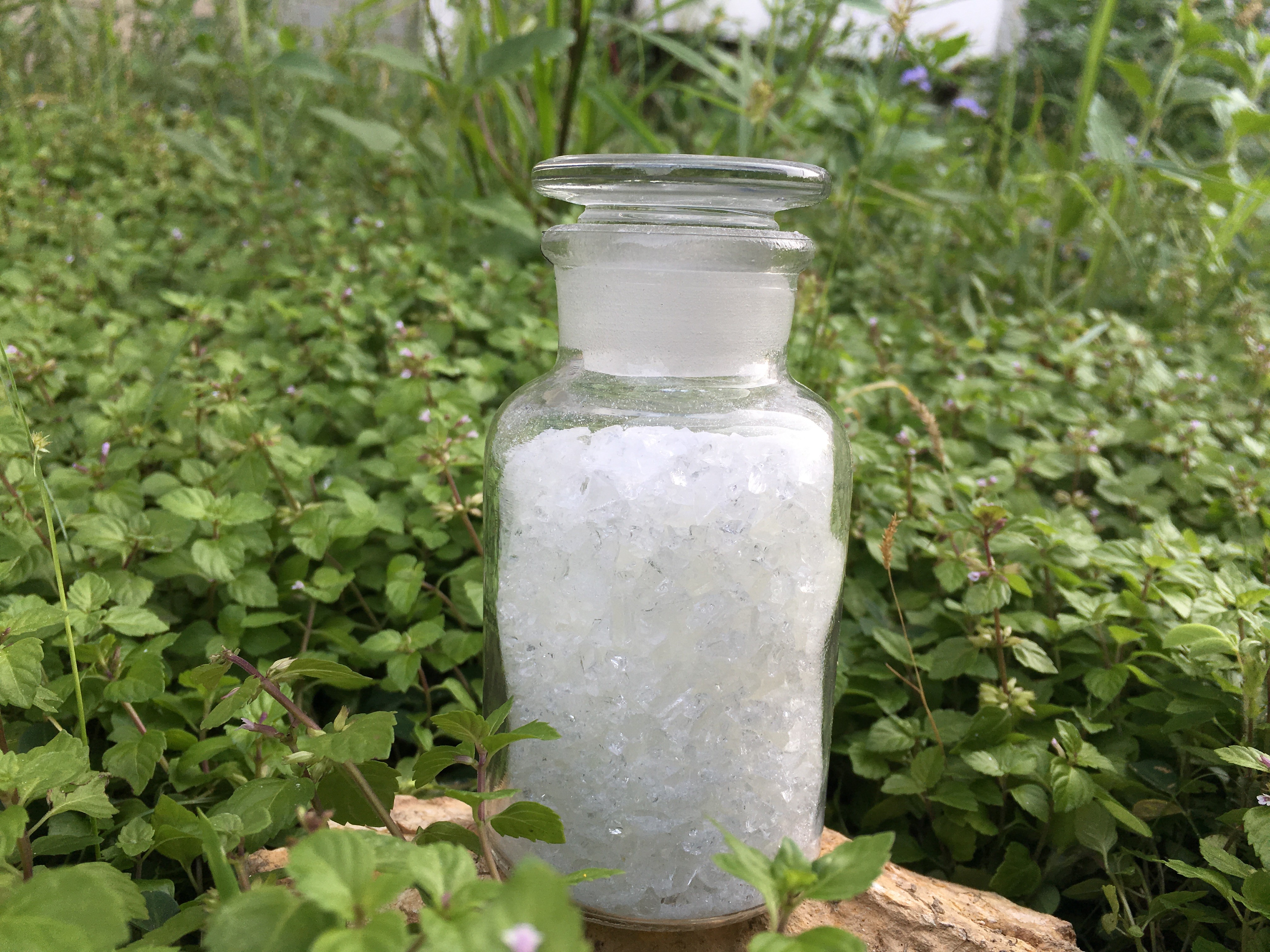

Appearance white or light yellow transparent flakes

Color (50%DMF): max: 2

Acid number(mgKOH/g): 31~36

Softening point(℃): 104~114

Glass transition temp.(℃): ~69

Melting viscosity(200℃, cone/plate, mPa·s): 7900 ~9100

Reactivity at 180℃(s, 7% TGIC): 140±20



 Recommend Formulation: NH5266—TGIC

NH5266 TGIC Filler & pigment Leveling agent Benzion 701
558 42 383 8 4 5



 Extrusion Condition:

Two-screw extruder

Zone I: 90~110℃ Zone II: 110~120℃

Speed of revolution: 500~1200rpm

Fineness of powder: <100μm



 Application Condition:

Electrostatic spraying with: 40~70KV

Film thickness: 50~100μm

Degreased cold-rolled steel 0.5mm



◇ Curing Requirement: 200℃×10~20min



◇ Film Properties:

Gel time(180℃,sec) 210~270

Horizontal flow(180℃,mm): 23~26

Gloss(60°): ≥85%

Bending(φ1mm): pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass



 Packaging:

PE bags, N.W. 25KG±0.1KG / bag



Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)





According to industry statistics, in 2014, Kinte polyester resin output ranked third in the national industry, becoming a well-known brand and technical leader in the field of polyester resin for powder coatings in China.



ROHS Approve 92/8 Saturated Polyester Resins , Polyester Based Resin For Color Coating 0ROHS Approve 92/8 Saturated Polyester Resins , Polyester Based Resin For Color Coating 1

ROHS Approve 92/8 Saturated Polyester Resins , Polyester Based Resin For Color Coating 2
