| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6566 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Low Temp. Cure Powder Coating |
|---|---|---|---|
| Advantage: | Low Temp. And Fast Cure | Rate: | 95/5 |
| Curing Condition: | 150°C/15mins Or 180°C/6mins | Property: | Superb Mechanical Property, Weathering Resistance |
| Highlight: | HAA saturated polyester resins,155C saturated polyester resins,HAA Thermoset Polyester Resin |
||
HAA Low Temperature 155℃ Fast Curing and Great Weatherability Polyester Resin NH6566
◇ Applications:
NH6566 is a saturated carboxyl polyester resin for polyester/primid powder coating system at the ratio 95:5. It can cure rapidly at low temperature
◇ Basic features:
Low temperature curing
Good mechanical properties
Good weathering resistance
◇ Specifications:

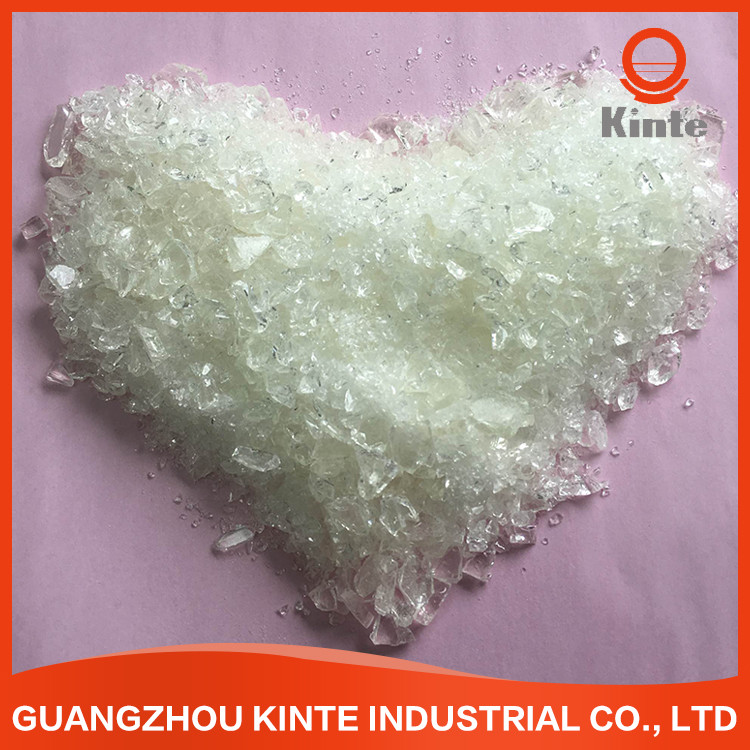

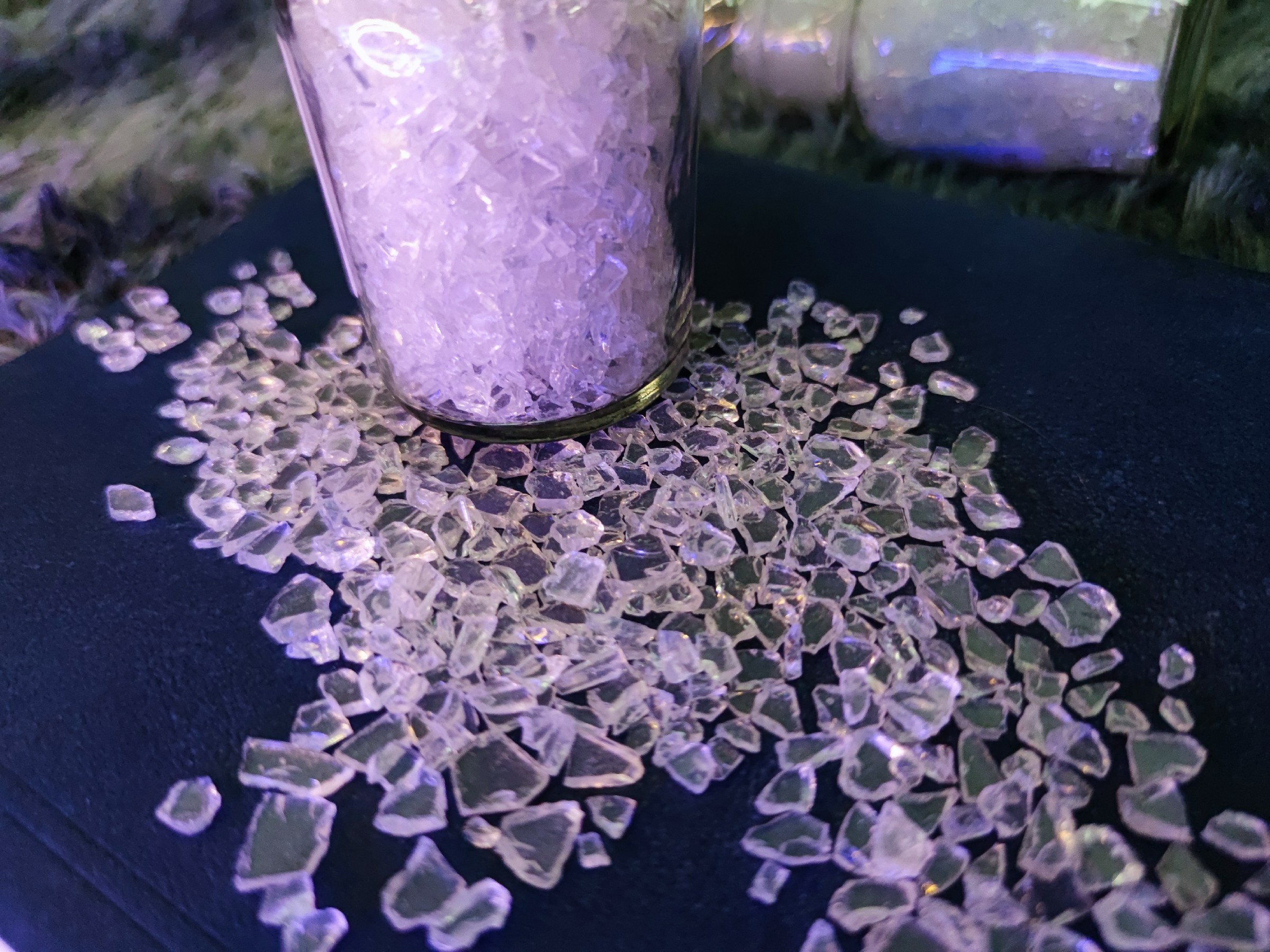

Appearance: white or pale yellow transparent flakes
Color (50%DMF): max: 3
Acid number(mgKOH/g): 32～38
Softening point(℃): 100～110
Glass transition temp.(℃): ～57
Melting viscosity(200℃, cone/plate, mPa·s): 4600±1000
Reactivity at 180℃(s, 5% T105): 120~300
◇ Recommend Formulation: NH6566—T105
| NH-6566 | T105 | Filler&pigment | Flow agent | Benzoin | 701 | 703 |
| 566 | 30 | 380 | 10 | 3 | 3 | 4 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Film thickness: 60～80μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 155℃×15min.
◇ Film Properties:
Gel time(180℃,sec) 90~300
Flow(180℃,mm): 22~28
Gloss(60°): ≥85%.
Bending(φ1mm): Pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:
All the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
