| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6583 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Powder Coating |
|---|---|---|---|
| Advantage: | Pinhole Free In Thicker Films | Rate: | 95/5 |
| Curing Condition: | 180°C/10mins | Property: | Good Mechanical Property,anti-yellowing,weathering Resistance And Storage Stability |
| Highlight: | Saturated Polyester Resin HAA,Saturated Polyester Resin 95/5,clear polyester resin HAA |
||
Good Flow High Gloss 95/5 HAA Polyester Resin NH6583 for Powder Coating of House-appliance and Aluminum Profile
◇ Applications:
NH-6583 is a saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 180℃.
◇ Basic features:
Excellent leveling
Outstanding mechanical properties
Good anti-yellowing
Pinhole free in thick films
Good weathering resistance
◇ Specifications:

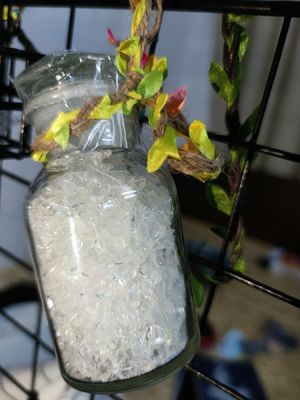

Appearance white or light yellow transparent flakes
Color(50%DMF): max:2
Acid number(mgKOH/g): 29～35
Softening point(℃) 96～106
Glass transition temp.( ℃) ～56
Melting viscosity(200℃, cone/plate, mPa·s): 3000±500
Reactivity at 180℃(s, 5% XL552): 245±45
◇ Recommend Formulation:NH-6583/HAA
| NH-6583 | XL-552 | Filler | Flow agent | Benzoin | 701 | 703 |
| 566 | 34 | 380 | 8 | 4 | 4 | 4 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×10min.
◇ Film Properties:
Gel time(180℃,sec) 160~300
Horizontal flow:(180℃),mm: 25~29
Gloss(60°): ≥88%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
