| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINTE |
| Certification: | ROHS,ISO90001,ISO14000,Reach,Qualicoat |
| Model Number: | NH6586 |
| Minimum Order Quantity: | 500KG |
| Price: | Negotiable |
| Packaging Details: | 25kg/PE bag , 875KG/PALLET , 17,500KG/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 80,000 tons/year |
| Specification: | HAA Cure | Application: | Powder Coating |
|---|---|---|---|
| Advantage: | Excellent Leveling&flow | Rate: | 95/5 |
| Curing Condition: | 180°C/10mins | Property: | Great Storage Performance, Mechanical Property, Anti-yellowing & Weathering Resistance |
| High Light: | HAA cure Saturated Polyester Resins,Saturated Polyester Resins 95/5,saturated polyester resin for coil coating formulation |
||
Great Storage Performance & Mechanical Properties General HAA Polyester Resin NH6586 for Powder Coating
◇ Applications:
NH-6586 is a saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 180℃. In this model, we upgraded the formula to achieve the balance between high leveling, weather resistance and mechanical properties of powder coatings.
◇ Basic features:
Good weathering resistance & storage stability
Excellent leveling
Excellent mechanical properties
Good anti-yellowing
◇ Specifications:

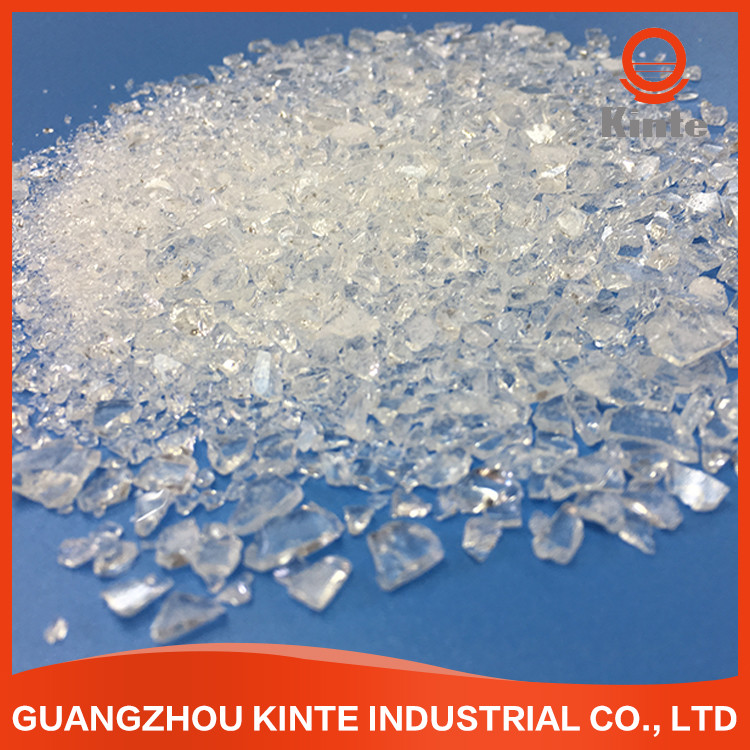

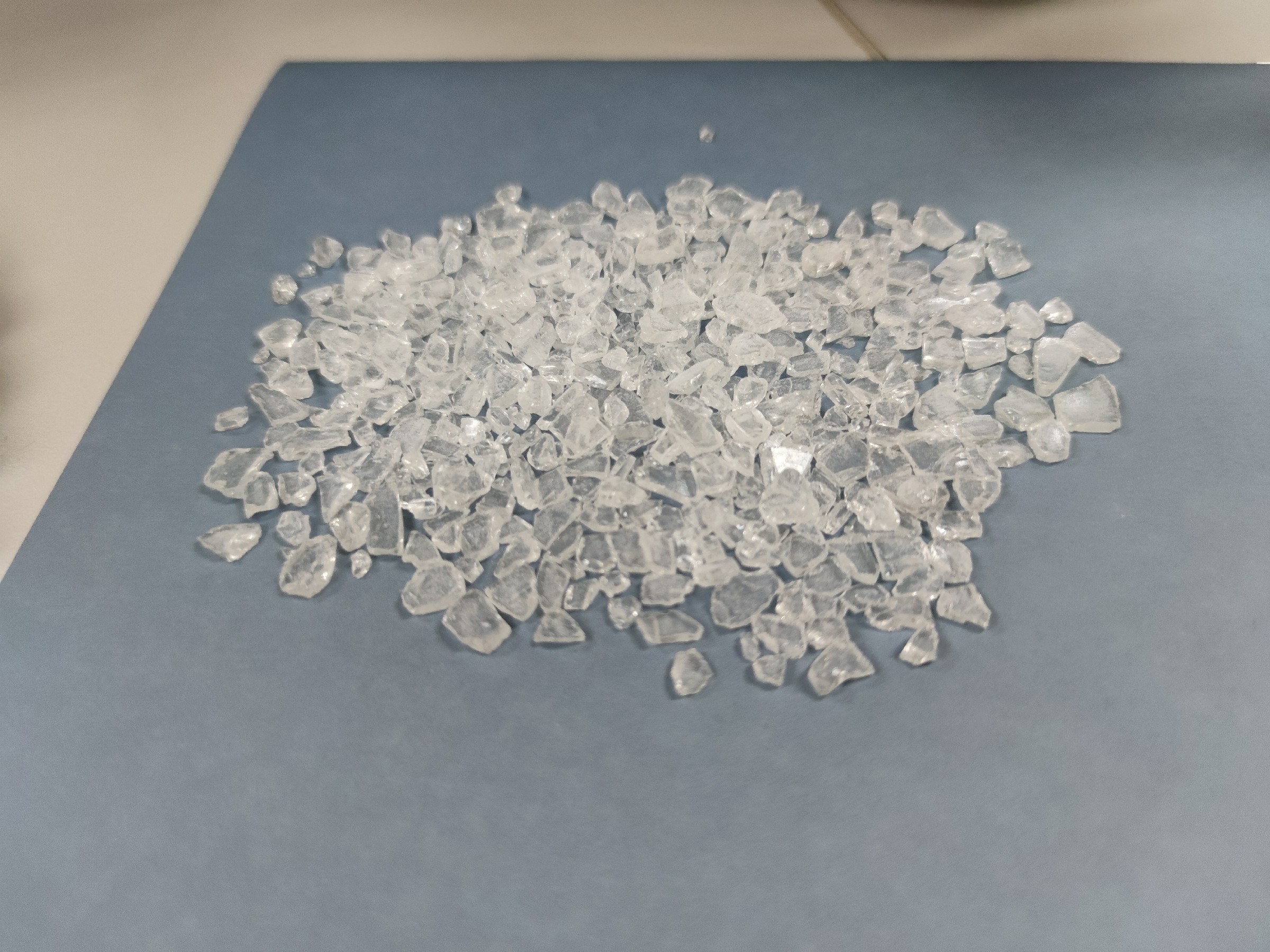

Appearance: white or light yellow transparent flakes
Color(50%DMF): max:2
Acid number(mgKOH/g): 30～36
Softening point(℃) 95～105
Glass transition temp.( ℃) ～59
Melting viscosity(200℃, cone/plate, mPa·s): 3600±700
Reactivity at 180℃(s, 5% XL552): 180±80
◇ Recommend Formulation:NH-6586/HAA
| NH-6586 | XL-552 | Filler | Flow agent | Benzoin | 701 | 703 |
| 566 | 34 | 380 | 8 | 4 | 4 | 4 |
◇ Extrusion Condition:
Two-screw extruder
Zone I: 90～110℃ Zone II: 110～120℃
Speed of revolution: 500～1200rpm
Fineness of powder: ＜100μm
◇ Application Condition:
Electrostatic spraying with: 40～70KV
Coating film thickness: 50～70μm
Degreased cold-rolled steel 0.5mm
◇ Curing Requirement: 180℃×10min.
◇ Film Properties:
Gel time(180℃,sec) 180~300
Horizontal flow:(180℃),mm: 26~30
Gloss(60°): ≥85%
Bending(φ1mm): pass
Adhesive(1mm,grade): 0
Pencil hardness: ≥1H
Impact (50cm): pass
◇ Packaging:
PE bags, N.W. 25KG±0.1KG / bag
Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
