| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH6582T |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 80,000 tons per year |
| Cure Type: | 95/5 HAA Polyester Resins | Cure Time: | 180℃×10min |
|---|---|---|---|
| Acid Value (mgKOH/g): | 30-35 | Viscosity (200℃, Cone/plate, MPa·s): | 5400±800 |
| Softening Point: | 100～110℃ | Glass Transition Temperature: | ～61℃ |
| Properties: | Excellent Mechanical Properties | Application: | For 95:5 Primid XL 552 Powder Coating |
| Highlight: | Primid Saturated Polyester Resins,Cured Powder Coating Saturated Polyester Resins |
||
95:5 Primid Saturated Polyester Resins for 180℃ Cured Powder Coatings
◎Introduction
NH-6582T is tribo chargerable type of NH6582, saturated carboxyl polyester resin designed for 95:5 Primid XL 552 powder coating to be cured at 180℃.
Models with a T indicate powder coatings made with this polyester resin that can be sprayed with a friction gun.
Methods of coating articles with powder coatings generally include electrostatic coating and fluidized bed coating. In the electrostatic coating method, the average particle size of the powder coating used is 30 μm or less, which usually tends to agglomerate the particles of the powder coating, resulting in reduced smoothness of the baked coating due to inclusion of binding particles . Furthermore, the fluidity of powder coatings in powder form is reduced, so that the coated object cannot be uniformly coated, resulting in a coating with low smoothness. On the other hand, coatings with an average particle size greater than 30 μm had a reduced tendency to stick, but after baking, resulted in the formation of large interparticle voids. If applied thinly (about 50 [mu]m or less), the resulting coating will be less smooth after baking.
By optimizing the polyester synthesis formula, NH-6582T can solve the above problems. The powder coating prepared by NH-6582T has no pinholes when applying thick films.
◎Basic Features
Excellent mechanical properties
Good anti-yellowing
Pinhole free in thick films
Good weathering resistance and storage stability
◎Recommend Formulation:
NH-6582T/HAA
| NH6582T | Primid XL-552 | Filler ＆ pigment | Leveling Agent | Benzoin | 701 | 703 |
| 566 | 34 | 380 | 8 | 4 | 4 | 4 |
◎Specifications:

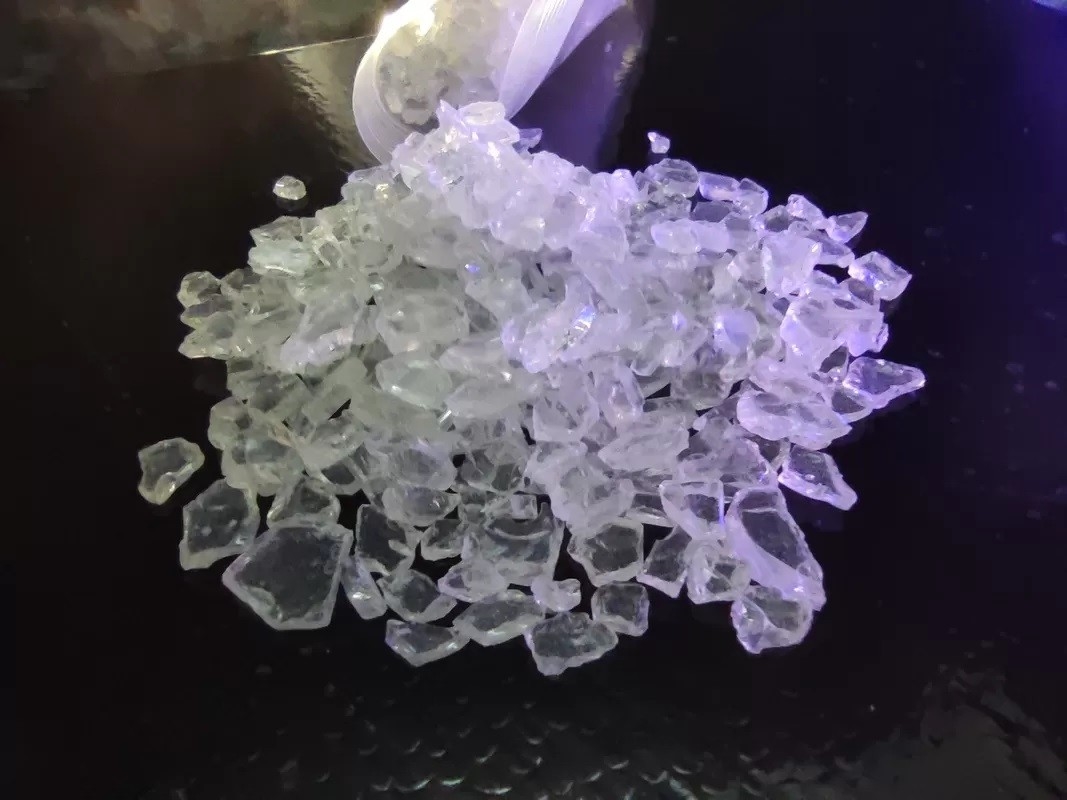

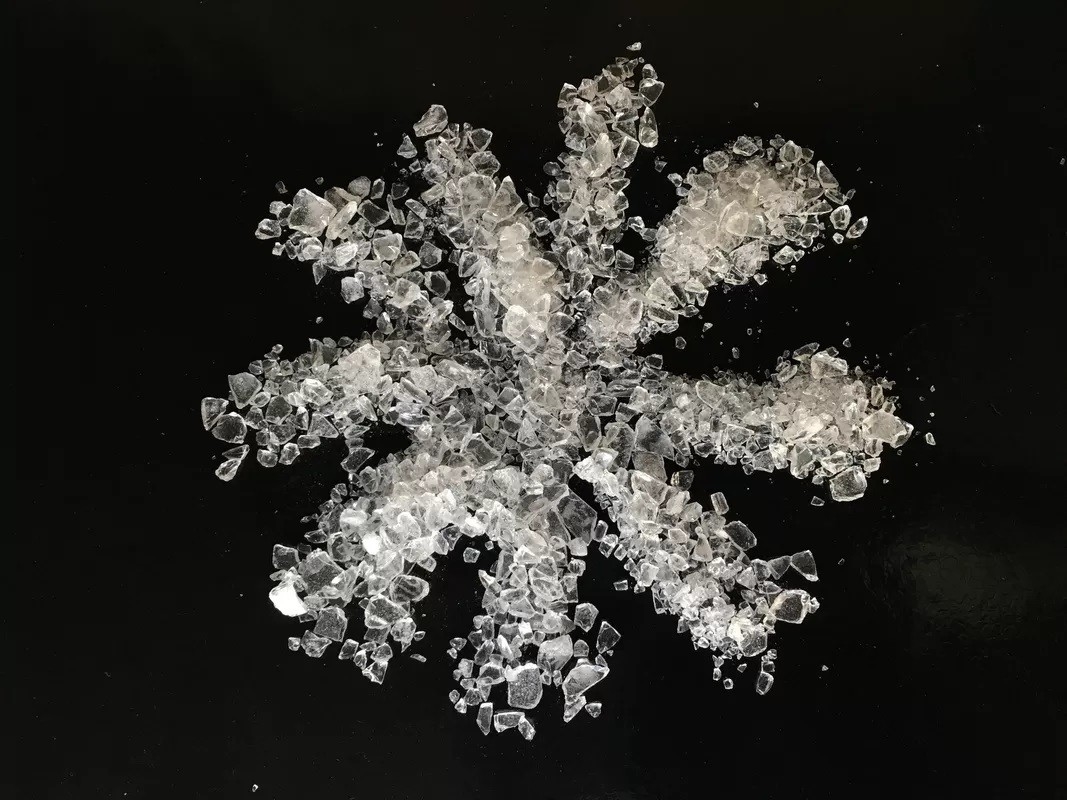

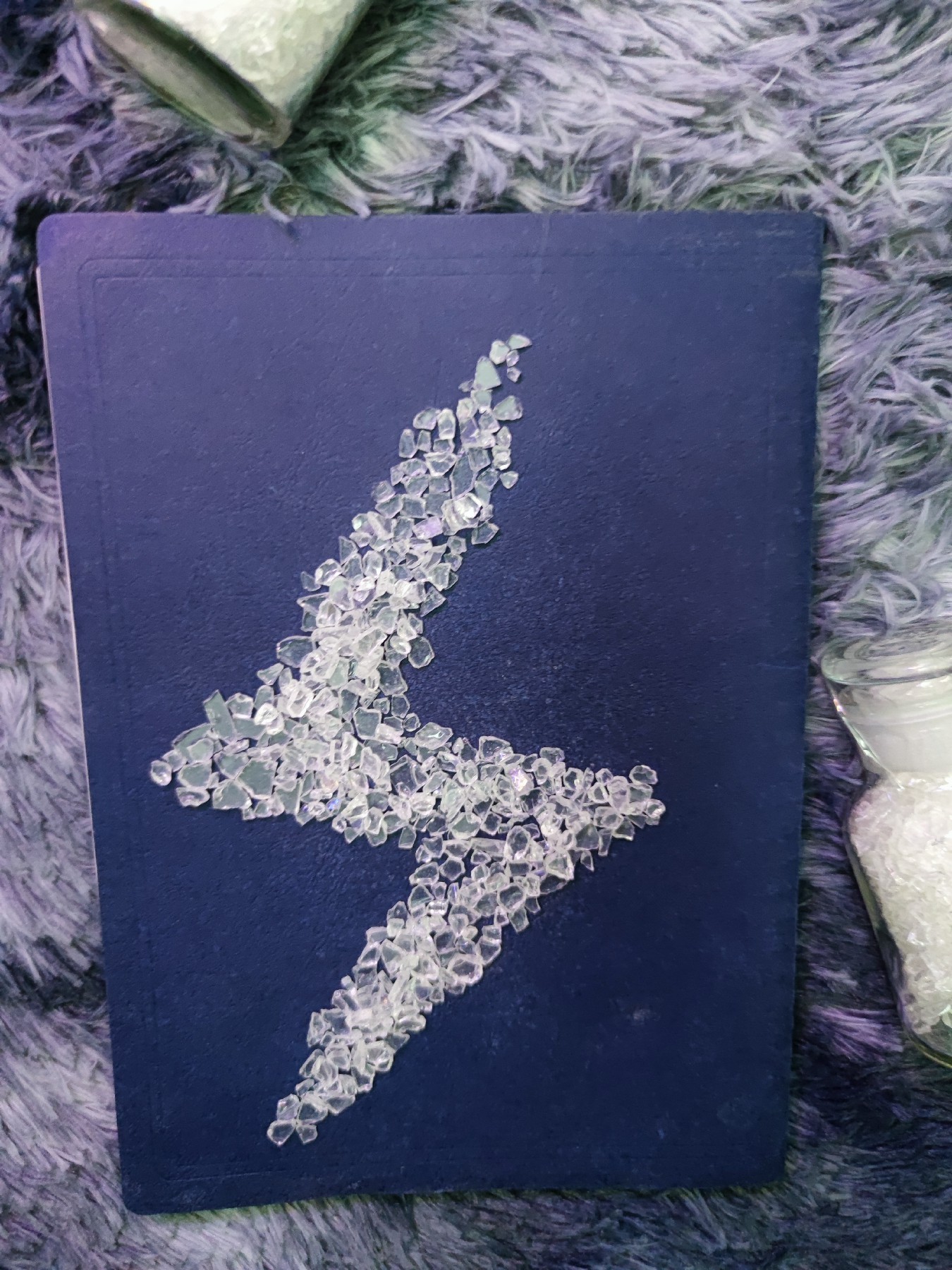

| Appearance | white or pale yellow transparent flakes |
| Color (50% DMF) | Max: 2 |
| Acid Value (mgKOH/g) | 30～35 |
| Softening Point (℃) | 100～110 |
| Glass Transition Temp. (℃) | ～61 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 5400±800 |
| Reactivity at 180℃ (s, 5% XL552) | 185±35 |
| Curing Requirement | 180℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◎Specifications II:
| Extrusion Condition | Two-screw Extruder | |
| Zone I: 90～110℃ | Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 120~200 |
| Horizontal Flow (180℃, mm) | 23~27 | |
| Gloss (60°) | ≥85% | |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Pass | |
◎Remarks:
All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
