| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | KA1381&KA1385 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Leveling | Cure Type: | Polyester Primid System |
|---|---|---|---|
| Cure Requirement: | 180℃×15min | Acid Number (mgKOH/g): | 80-90 & 18-22 |
| Viscosity (mPa·s/200℃): | 1500-4000 & 8000-12000 | Softening Point(℃): | 98-118 & 100-110 |
| Glass Transition Temp.(℃): | ～58 & ~56 | Applications: | For One Shot Matt Outdoor Low Gloss Powder Coatings |
| Highlight: | One Shot Matt Saturated Polyester Resin,Low Gloss Saturated Polyester Resin |
||
Saturated Polyester Resin for One Shot Matt Outdoor Low Gloss Powder Coatings
Introduction
KA1381 and KA1385 are saturated polyester resins with high and low acid value respectively, mainly used in polyester/ primid powder coating system, KA1381 and KA1385 can be used for one shot to prepare outdoor low-gloss powder coatings.
Basic Features
One shot for low gloss;
Good weather resistance and mechanical properties;
Excellent leveling properties.
Recommend Formulation:
| KA1381 | KA1385 | XL552 | XM228 | Leveling agent | Benzoin | 701 | carbon black |
| 135 | 135 | 21.5 | 200 | 4 | 2 | 2 | 3 |
Specifications I
| KA1381 | KA1385 | |

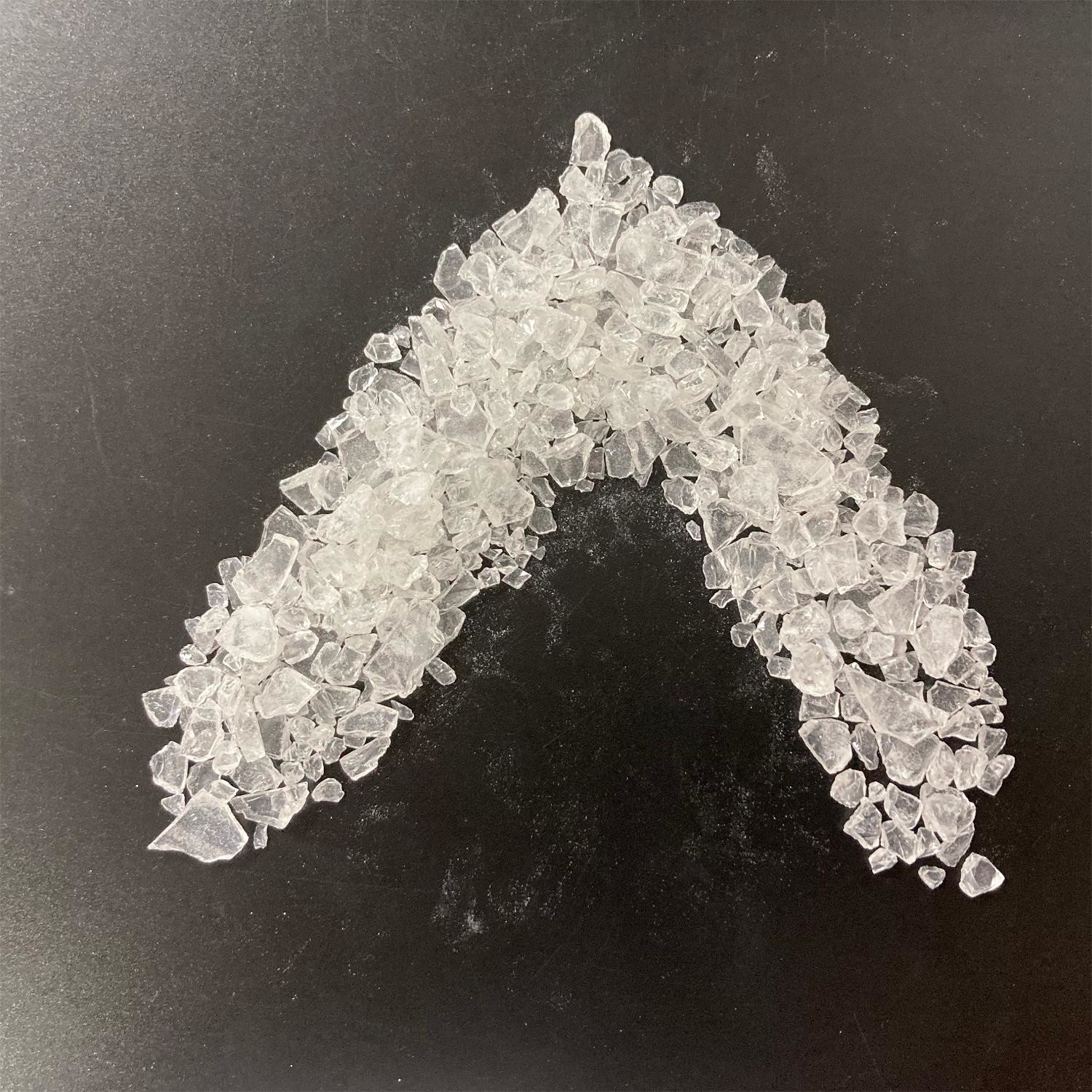

| Appearance | White or Light Yellow Transparent Flakes | |
| Acid Number (mgKOH/g) | 89-90 | 18-22 |
| Softening Point (℃) | 98-118 | 100-110 |
| Glass Transition Temp. ( ℃) | ~ 58 | ~ 56 |
| Melting Viscosity (ICI, mPa·s/200℃) |
1500 ~ 4000 |
8000 ~ 12000 |
| Reactivity at 180℃ (s, XL552) |
20 ~ 90 |
180 ~ 240 |
| Curing Requirement |
180℃×15min |
|
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag | |
◇Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Jacket temperature |
110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 30~150 |
| Horizontal Flow (180℃, mm) | ≤22 | |
| Gloss (60°) |
≤10%
|
|
| Blending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) |
Indirect Pass |
|
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
