| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH6584 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Pinhole Free In Thick Films | Cure Type: | 95/5 Polyester Primid |
|---|---|---|---|
| Cure Requirement: | 180℃×10min | Acid Number (mgKOH/g): | 30-35 |
| Viscosity (mPa·s/200℃): | 3500±1000 | Softening Point(℃): | 98～108 |
| Glass Transition Temp.(℃): | ～ 60 | Applications: | For 180℃ Curing Powder Coatings |
| Highlight: | HAA Saturated Polyester Resin,95/5 HAA Saturated Polyester Resin |
||
95/5 HAA Saturated Polyester Resin for 180℃ Curing Powder Coatings
Introduction
NH6584 is a saturated carboxyl polyester resin designed for 95:5 Primid XL552 powder coating to be cured at 180℃.(Special designed for clients changing from normal polyester TGIC type or normal hybrid type to Polyester HAA type).
Basic Features
Good leveling
High cost-effective
Outstanding mechanical properties
Pinhole free in thick films
Good storage stability
Recommend Formulation:
NH6584/TGIC
| NH6584 | T105 | Filler | Flow agent | Benzoin | 701 | 703 |
| 200 | 10.5 | 133 | 2.8 | 1.4 | 1.4 | 1.4 |
Specifications I

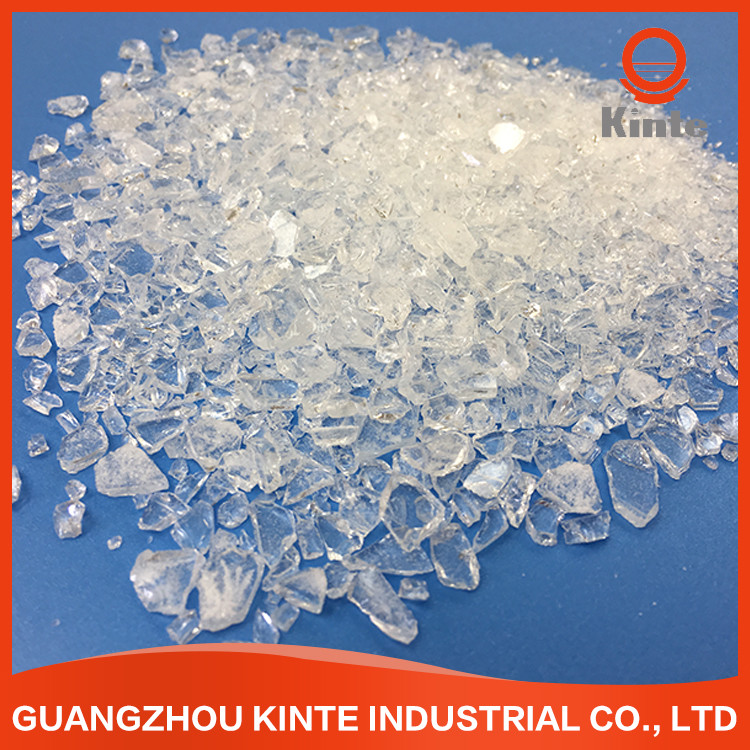

| Appearance | White or Light Yellow Transparent Flakes |
| Acid Number (mgKOH/g) | 30～35 |
| Softening Point (℃) | 98～108 |
| Glass Transition Temp. ( ℃) | ~ 60 |
| Melting Viscosity (ICI, mPa·s/200℃) |
3500±1000 |
| Reactivity at 180℃ (s, 5% XL552) |
300±130 |
| Curing Requirement |
180℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Zone I: 90～110℃ |
Zone II: 110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 60～80μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 200~350 |
| Horizontal Flow (180℃, mm) | 25~30 | |
| Gloss (60°) | ≥88% | |
| Blending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) |
Pass |
|
Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
