| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | HH2606 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Matting Performance | Cure Type: | 60/40 Polyester Epoxy |
|---|---|---|---|
| Cure Requirement: | 200℃×10min | Acid Number (mgKOH/g): | 45-55 |
| Viscosity (mPa·s/200℃): | 3000-6000 | Reactivity: | 300-480 |
| Glass Transition Temp.(℃): | ～ 58 | Applications: | Low Gloss Powder Coatings |
| Highlight: | Hybrid Saturated Polyester Resin,60/40 Hybrid Saturated Polyester Resin |
||
60/40 Hybrid Saturated Polyester Resin for Low Gloss Powder Coatings
Introduction
HH2606 is 60/40 curing polyester, mainly used in polyester/epoxy powder coating systems.
Basic Features
Dedicated to the preparation of matte powder coatings, taking into account good appearance, mechanical properties and storage stability, it should be used with caution in the preparation of high-gloss powder coatings.
Recommend Formulation:
HH2606/TGIC
| HH2606 | 014U | PM228 | Leveling agent | Benzoin | 701 | PE520 | carbon black | 3390 |
| 198 | 132 | 128 | 5 | 2 | 3 | 3 | 4 | 25 |
Specifications I

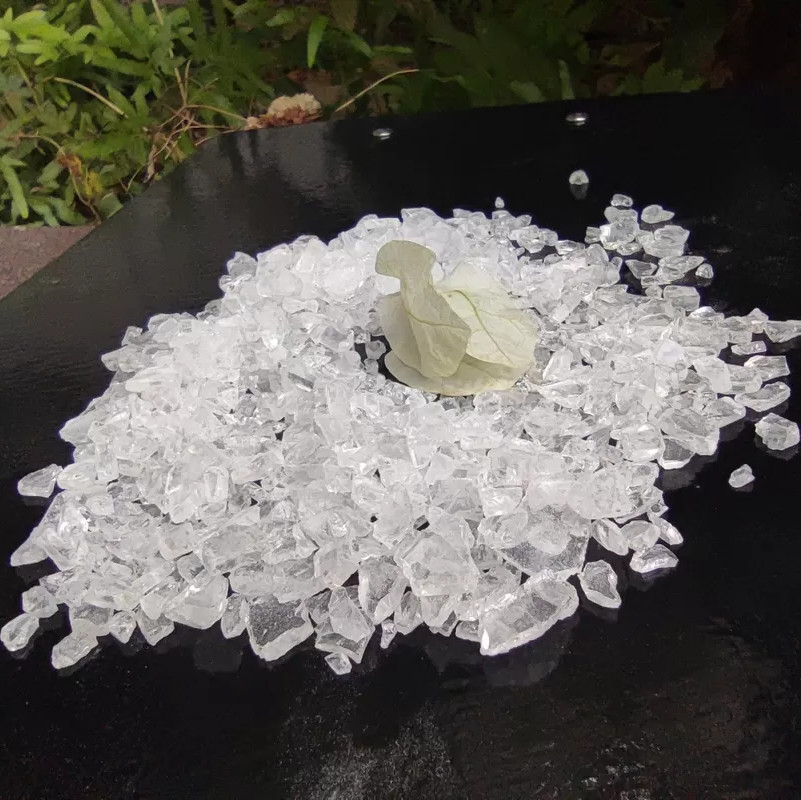

| Appearance | White or Light Yellow Transparent Flakes |
| Acid Number (mgKOH/g) | 45～55 |
| Soften Point ( ℃) | 90 ~ 120 |
| Glass Transition Temp. ( ℃) | ~ 58 |
| Melting Viscosity (ICI, mPa·s/200℃) |
3000-6000 |
| Reactivity at 180℃ (s, 50% 014U) |
300-480 |
| Curing Requirement |
200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Jacket Temperature |
110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 45~150 |
| Horizontal Flow (180℃, mm) | 22~27 | |
| Gloss (60°) |
≤10% |
|
| Blending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) |
+50/-40
|
|
Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
