| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | 6002 & 6006 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Product Type: | Dry-blended Polyester Resins | Ratio: | 90/10 & 96/4 |
|---|---|---|---|
| Curing Type: | TGIC Curing System | Curing Time: | 200℃×10min |
| Acid Number (mgKOH/g): | 55～65 & 18～23 | Glass Transition Temp.( ℃): | ~67 & ~60 |
| Properties: | Good Leveling And Weathering Resistance | Application: | For Outdoor Semi-gloss Polyester/TGIC Powder Coatings |
| Highlight: | Blended TGIC Saturated Polyester Resin,Low Gloss Saturated Polyester Resin |
||
Blended TGIC Saturated Polyester Resin With Good Leveling For Outdoor Low Gloss Powder Coatings
◎Introduction
6002 and 6006 are high and low acid value polyester resins respectively, which are used in polyester/TGIC powder coating systems. Using 6002 and 6006 to make powder respectively and then dry mixing to make outdoor semi-gloss powder coating.
Due to its advantages of no pollution, energy saving, and near-zero VOC emissions, powder coatings have achieved rapid development around the world, with an output of 1.6 million tons in 2017. At present, domestic thermosetting powder coatings are mainly divided into indoor powder coatings and outdoor powder coatings, of which indoor powder coatings are mainly epoxy resin powder coatings, while outdoor powder coatings can be cured by TGIC and Primid. When TGIC is used to cure powder coatings since no small molecular by-products are formed during baking and curing, the surface of the coating is not prone to shrinkage cavities, pinholes, and other problems, and the surface clarity and gloss are high.
◎Basic Features
Low gloss
Good weathering resistance
Good leveling
Good mechanical properties
◎Recommend Formulation:
| Formulation | 6002 | 6006 | TGIC | TiO2 R930 | BaSO4 44HB |
PV-88 |
Benzoin |
| I | 270 | — | 30 | 75 | 125 | 3 | 1.5 |
| II | — | 288 | 12 | 75 | 125 | 3 | 1.5 |
◎Specifications I
| Items | 6002 | 6006 |
| Appearance | Pale yellow flake | Pale yellow flake |
| Acid Number (mgKOH/g) | 55～65 | 18～23 |
| Softening Point (℃) | 105～115 | 103～113 |
| Glass Transition Temp. (℃) | ～67 | ～60 |
| Melting Viscosity (200℃, cone/plate, mPa·s) | 3800-5500 | 4500-6500 |
| Reactivity s (180℃, TGIC) | 30-130 | 500-900 |
| Curing Requirement | 200℃×10min | |

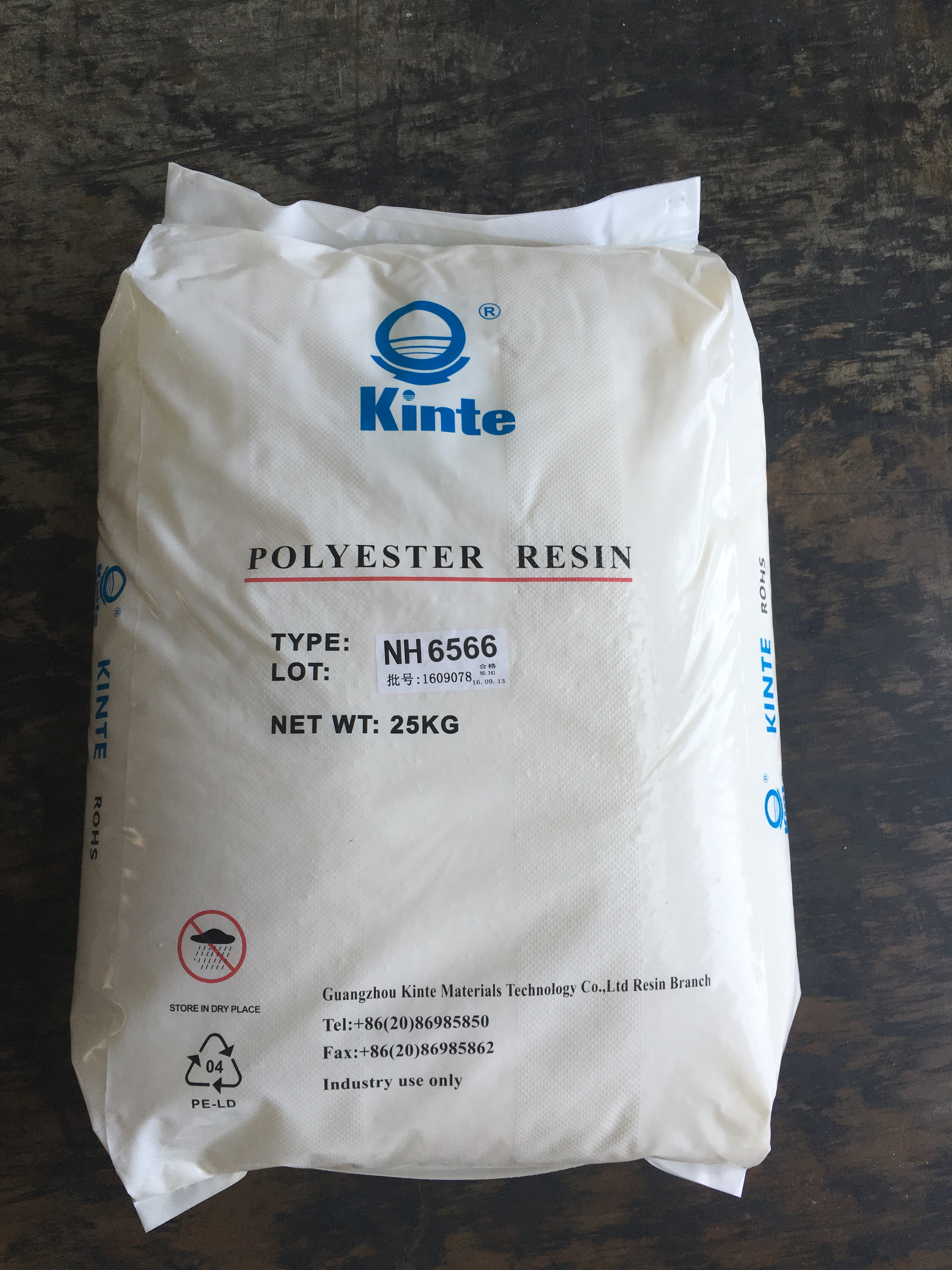

| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag | |
◎Specifications II
| Extrusion Condition | Two-screw Extruder | 110～120℃ |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Extrude 6002 and 6006 respectively according to the formula, and mix and pulverize in a ratio of 1:1 to make powder. | ||
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gloss (60°) | ≤25% |
| Bending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) | Direct pass | |
◎More Code
| Code | Ratio | Cure Cycle | Acid Value (mgKOH/g) | Viscosity (mPa.s/200℃) | Tg (℃) | Reactivity (s/180℃) | Properties |
| NH6083 | 90/10 | 180℃*10min | 80~90 | 1500~3500 | ~58 | 30-90 | Fast cure resin. For one shot matt formulations. |
| NH6685 | 96/4 | 180℃*10min | 19~24 | 4800~6400 | ~57 | 220-280 | |
| NH6381 | 93/7 | 180℃*10min | 47~54 | 3800~4800 | ~60 | 60-120 | Dry-blended for low gloss powder coatings with good mechanical properties and flow. |
| NH6688 | 96/4 | 180℃*15min | 19~24 | 4800~6400 | ~56 | 220-280 | |
| NH6161 | 91/9 | 160℃*15min | 68~76 | 2500~4500 | ~59 | 50-150 | Low bake resins. Dry-blended for low gloss powder coatings, with good mechanical properties and flow. |
| NH6687 | 96/4 | 160℃*15min | 24~29 | 4000~6500 | ~56 | 160-260 |
◎Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
