| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO14000, ISO90001, Reach, Qualicoat, ROHS |
| Model Number: | NH4306 |
| Minimum Order Quantity: | 1000kg |
| Price: | Negotiable |
| Packaging Details: | 25Kg/PE Bag, 875Kg/Pallet, 17,500Kg/20GP |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 80,000 tons per year |
| Features: | Excellent Leveling And Good Extinction Properties | Cure Type: | 93/7 Polyester TGIC |
|---|---|---|---|
| Cure Requirement: | 200℃×10min | Acid Number (mgKOH/g): | 29-35 |
| Viscosity (mPa·s/200℃): | 5500±1000 | Reactivity: | 260±80 |
| Glass Transition Temp.(℃): | ～ 66 | Applications: | For High Gloss Powder Coatings |
| Highlight: | 93/7 Saturated Polyester Resins,Saturated Polyester Resins For Powder Coatings |
||
Excellent Leveling 93/7 Saturated Polyester Resins For High Gloss Powder Coatings
Introduction
NH4306 is a saturated polyester resin designed for 93/7 TGIC powder coating systems.
Basic Features
Excellent leveling performance
Excellent matting performance
Excellent mechanical properties
Good storage stability
Suitable for high-gloss and matte powder coatings.
Recommend Formulation:
NH4306/TGIC
| NH4306 | TGIC | Filler ＆ pigment | Leveling agent | Benzoin | 701 |
| 558 | 42 | 383 | 8 | 4 | 5 |
Specifications I

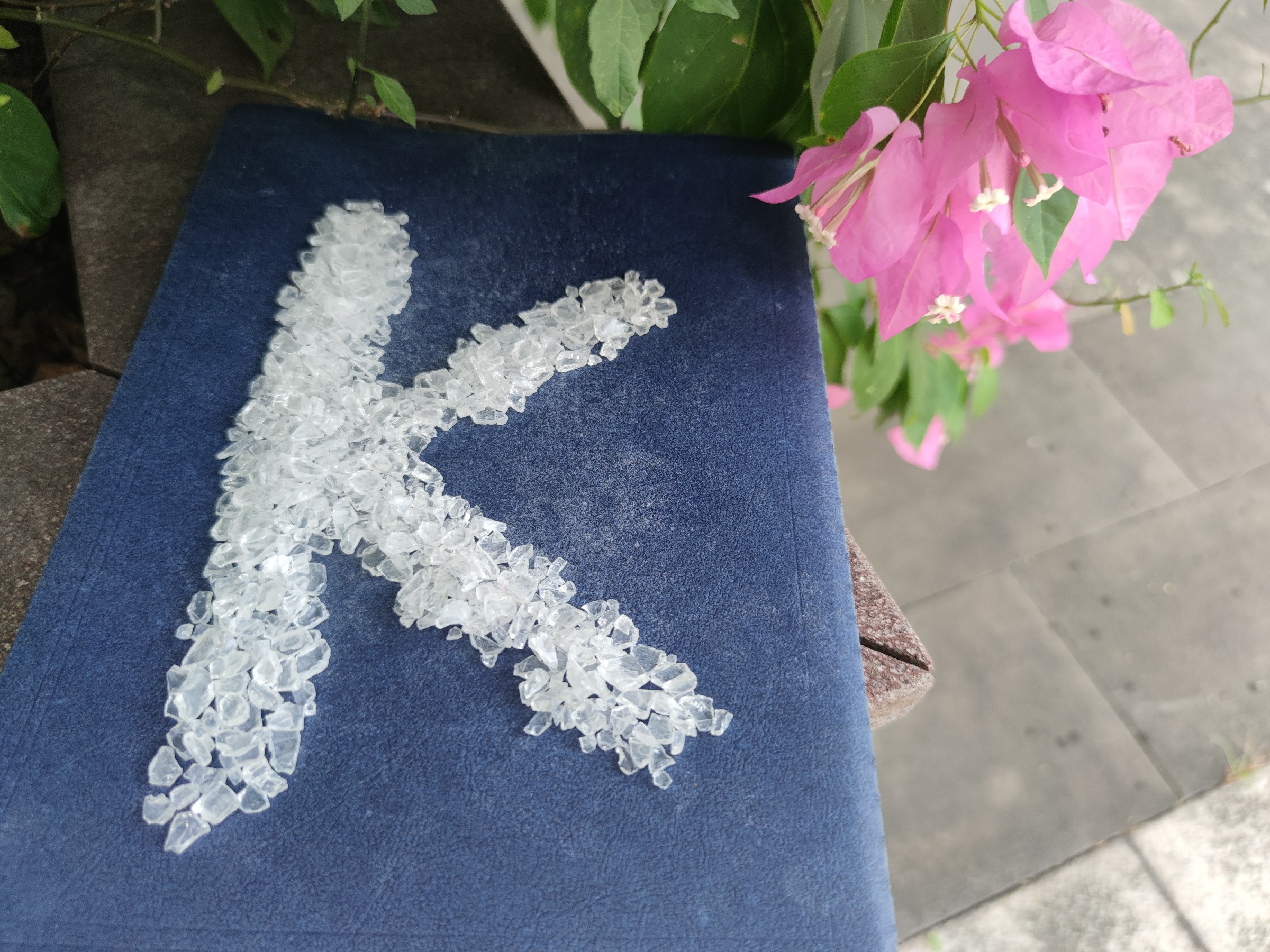

| Appearance | White or Light Yellow Transparent Flakes |
| Acid Number (mgKOH/g) | 29～35 |
| Glass Transition Temp. ( ℃) | ~ 66 |
| Melting Viscosity (ICI, mPa·s/200℃) |
5500±1000 |
| Reactivity at 180℃ (s, 7% TGIC) |
260±80 |
| Curing Requirement |
200℃×10min |
| Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
◇Specifications II:
| Extrusion Condition | Two-screw Extruder | |
|
Jacket temperature |
110～120℃ | |
| Speed of Revolution | 500～1200rpm | |
| Fineness of Powder | ＜100μm | |
| Application Condition | Electrostatic Spraying With | 40～70KV |
| Coating Film Thickness | 50～70μm | |
| Degreased Cold-rolled Steel | 0.5mm | |
| Film Properties | Gel Time (180℃, sec) | 280~420 |
| Horizontal Flow (180℃, mm) | 26~29 | |
| Gloss (60°) | ≥88% | |
| Blending (φ1mm) | Pass | |
| Adhesive (1mm, grade) | 0 | |
| Pencil Hardness | ≥1H | |
| Impact (50cm) |
Pass |
|
◇More Codes:
| Code | Ratio | Cure Cycle |
AV (mgKOH/g) |
Viscosity (mPa.s/200ºC) |
Tg (ºC) |
Reactivity (s/180ºC) | Properties |
| PC3303 | 93/7 | 250ºC*1.5min | 30~37 | 3500~6500 | ~60 | 50-150 | Suitable for coil applications, high flexibility and excellent mechanical properties. |
| NH4306 | 93/7 | 200ºC*10min | 29~35 | 4500~6500 | ~66 | 200-360 | Good weather resistance and excellent overall performance. |
| NH0307 | 93/7 | 200ºC*10min | 30~36 | 2600~4600 | ~63 | 140-340 | High cost performance, good storage stability and excellent matting performance. |
| NH0308 | 93/7 | 200ºC*10min | 30~36 | 2200~4200 | ~63 | 100-300 | High cost performance, excellent storage stability, outstanding leveling performance and excellent anti-interference performance. |
◇Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
