| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | ISO90001, ISO14000, 16949, Qualicoat, Reach, ROHS |
| Model Number: | P-CL0208-S9 |
| Minimum Order Quantity: | 100Kg |
| Price: | Negotiable |
| Packaging Details: | 15kg per carton |
| Delivery Time: | Within 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 500 tons per month |
| Product Type: | Polyester TGIC | Color: | Clear |
|---|---|---|---|
| Advantages: | Excellent Outdoor Weatherability And Excellent Physical Properties | Application: | Special For Aluminum Wheel Hub Cover |
| Application Craft: | Electrostatic Spraying Or Fluidized Bed Dipping | Curing Conditions: | 180°C/20min Or 200°C/10min |
| Density: | 1.2 ~ 1.7 G/cm3 | Gloss: | ≥ 100% |
| Highlight: | Polyester TGIC Clear Powder,ISO14000 TGIC Clear Powder |
||
ISO14000 Polyester TGIC Clear Powder, Outdoor Transparent Powder Coating for Wheel Hub
◎ Introduction
As a representative of solvent-free coatings, powder coatings, together with water-based coatings, have become the mainstream of the development of the coatings industry in recent years. The research of powder coatings for automotive coating has been carried out for more than 20 years, and the application field was initially limited to auto parts, automotive primers, anti-rock primers, etc. It was not until the late 1990s that it was used in batches for car topcoats and covers glossy paint, become a real car coating.
At present, the main powder coatings for aluminum wheels on the market are wheel base powder and overcoat transparent powder. Overcoat clear powders for automotive applications must have outstanding performance in terms of film thickness, gloss and brightness. Must have good mechanical properties such as impact resistance, scratch resistance and excellent adhesion. Coatings must be resistant to acid rain corrosion, temperature fluctuations, and UV rays, while complying with environmental protection and safety requirements, making production more economical while meeting quality goals. The overcoat clear powder is mainly polyester type, GMA acrylic type, etc.
Acrylic type transparent powder has good appearance and weather resistance, so most of the current aluminum wheel hub cover use acrylic type transparent powder. However, the acrylic type transparent powder has poor coverage on the corners of the aluminum wheel hub due to low viscosity and large flow, resulting in poor corrosion resistance of the aluminum wheel hub. Compared with acrylic type transparent powder coatings, polyester type transparent powder coatings have better edge and corner coverage and better corrosion resistance.
◎Filed of Application
Outdoor transparent powder coating series products are based on saturated carboxyl polyester resin and TGIC curing agent as the main base materials, which can be used for thermosetting powder coatings for electrostatic spraying and fluidized bed dipping. It is a series of products specially designed for the characteristics of light coating on the surface of the aluminum wheel hub, and can also be used in the fields of External protective or decorative coatings for metal furniture, metallic and pearlescent effects and mixed colors, etc.
◎Advantages
Excellent exterior exposure durability
Excellent transparency
Excellent physical properties
Excellent clarity and flowing
◎Film Properties
| Properties | Test Standard or Method | Test Index | |
| Gloss (60°) | ASTM D5965-96 | / | ≥ 100% |
| Impact Resistance | ISO 6272 | GB/T 1732-1993 | 50Kg·cm |
| Adhesion (Cross Cut) | ISO 2409 | GB/T 9286-1998 | Grade 0 |
| Pencil Hardness | ASTM D3363 | GB/T 6739-1996 | H-2H |
| Flexibility | ISO 1519 | GB/T 6742-1986 | 2mm |
| Salt Spray Test | ISO 7253 | GB/T 1771-1991 | ≥ 500h |
| Humidity Test | ISO 6270 | GB/T 1740-1979 | ≥ 1000h |
| Light Aging Test (QUV B313) | ASTM G151 | / | 240h |
◎Properties
Color: Clear
Apperance: Flat and Smooth
Density: 1.2 ~ 1.7 g/cm3
◎Spraying Parameter
Spraying Craft: Electrostatic spraying, fluidized bed dip coating.
Preheating Temperature: The workpiece can be preheated according to the workpiece condition and coating requirements
Curing conditions: It is recommended to bake at 180°C for 20 minutes or 200°C for 10 minutes after spraying at room temperature. Customers can adjust according to the site conditions.
◎Precautions
The particle size of the powder corresponding to different coating methods will be different, please make a request in advance.
Different spray thickness will affect color, gloss, appearance, etc.
There is a difference between the laboratory sample and the production line coating plate, and the customer needs to adjust the spraying parameters to meet the requirements.
◎Transportation and Storage
Carton packaging with net weight 15Kg
Non-dangerous goods, no special transport requirements
Store in a cool, dry place below 25°C
Shelf life 3 ~ 6 months
◎Health and Safety
All raw materials of powder coatings do not contain toxic substances, and no toxic gas is produced during baking, but inhalation of dust should be avoided during use. Operators should wear dust masks and minimize long-term contact between skin and powder coatings. The paint attached to the skin can be washed with soap.

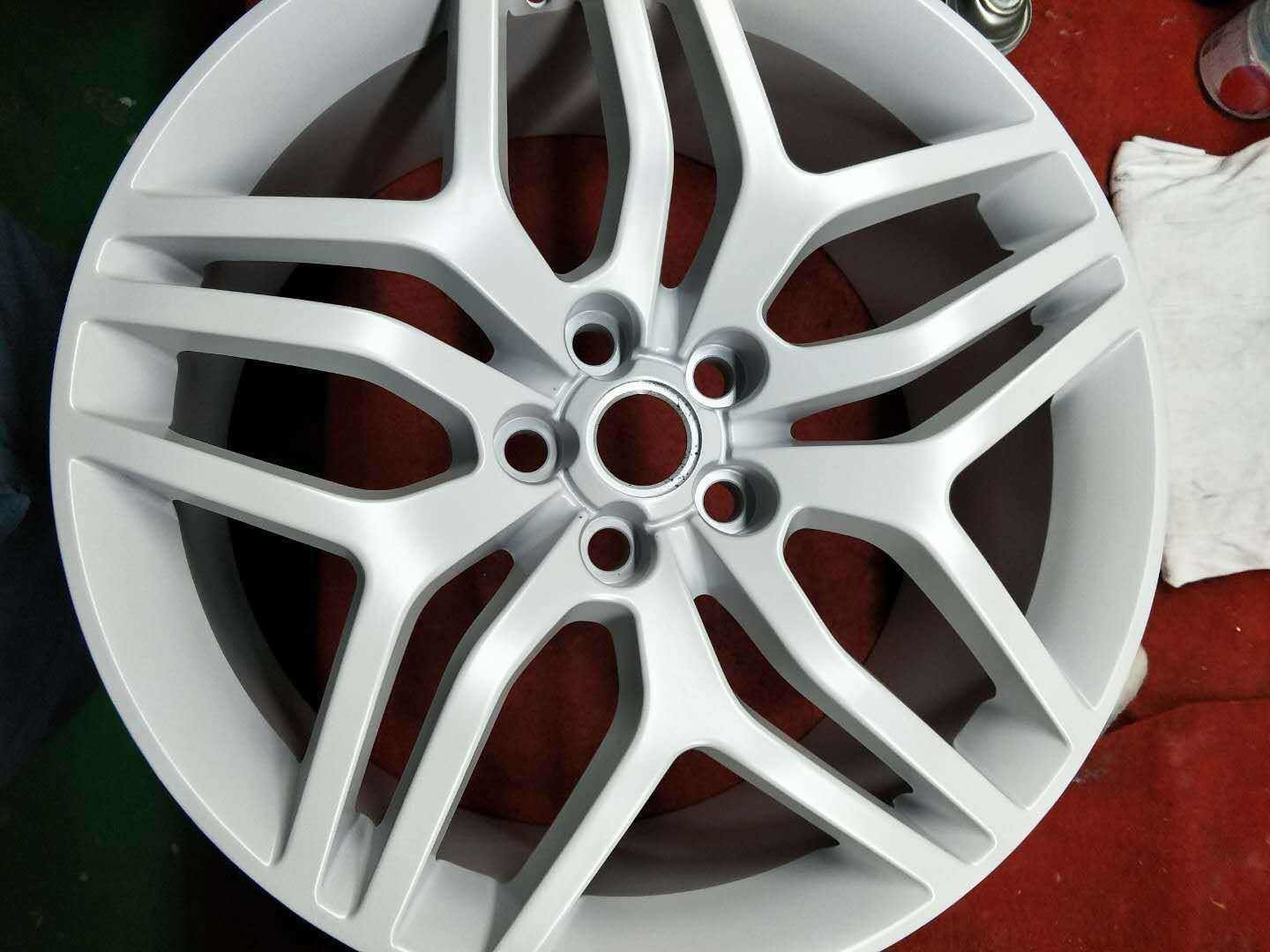

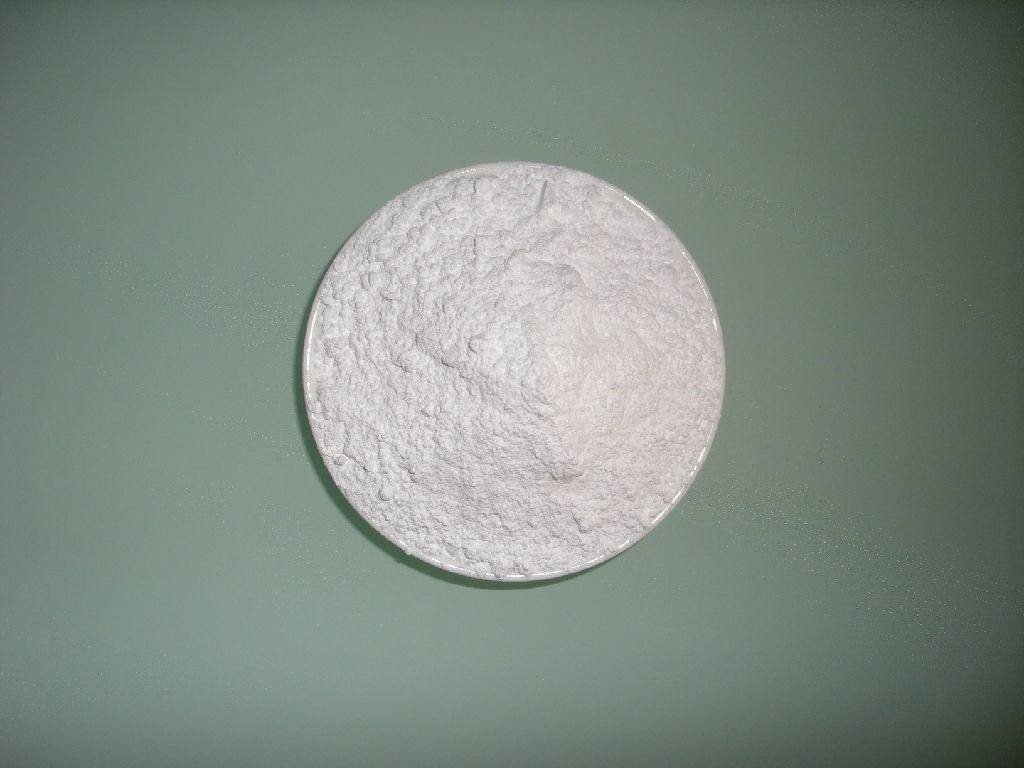

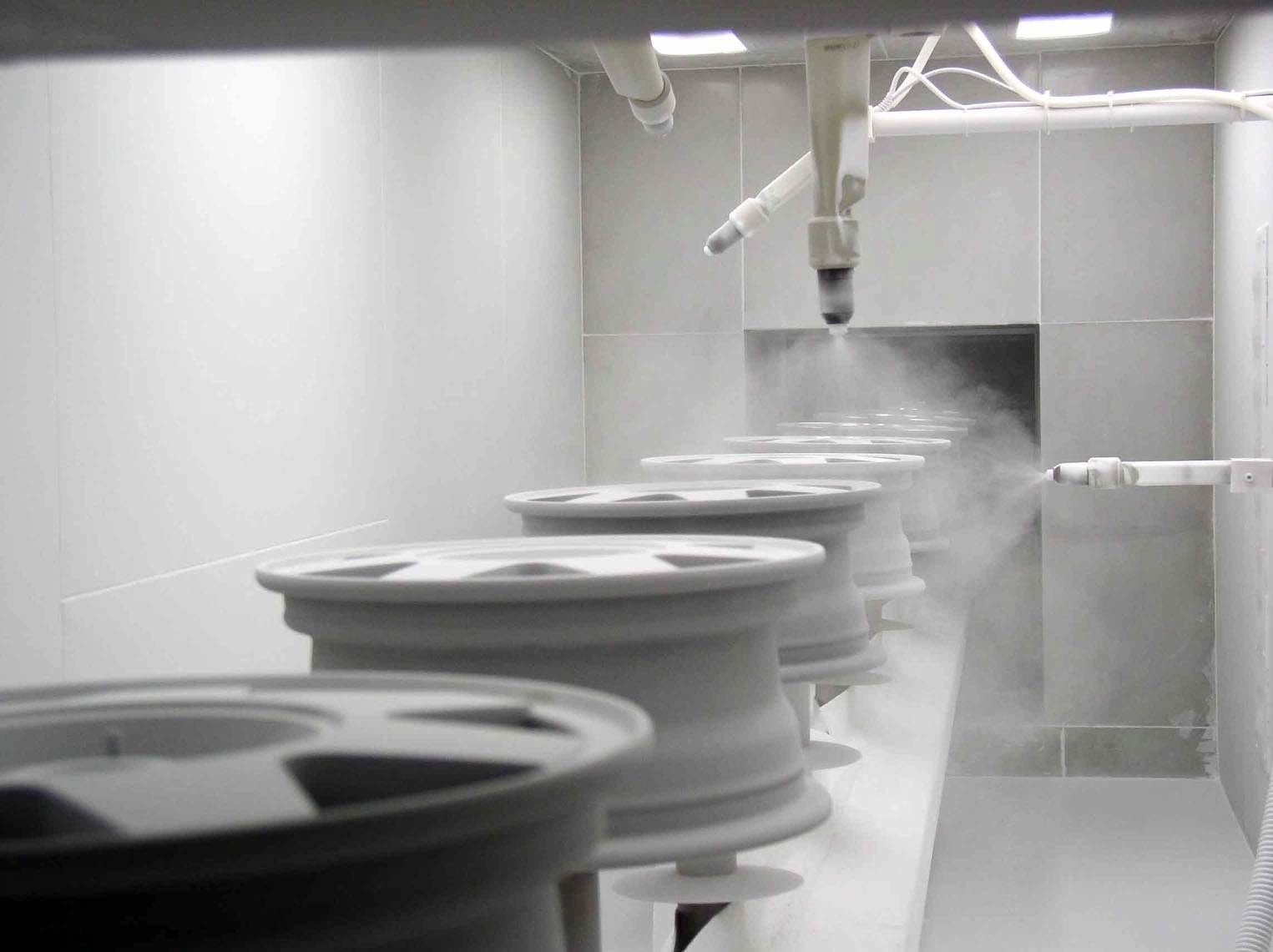

◎Product Shows
