| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat, Reach, ROHS, 16949, ISO90001, ISO14000 |
| Model Number: | A-CL0306K |
| Minimum Order Quantity: | 100Kg |
| Price: | Negotiable |
| Packaging Details: | 15kg per carton |
| Delivery Time: | Within 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 500 tons per month |
| Color: | Transparent | Apperance: | Flat And Smooth |
|---|---|---|---|
| Advantages: | Good Surface Strength And Excellent Scratch Resistance | Application: | Aluminum Wheels, Hardware Bathroom, Metal Furniture |
| Density: | 1.2 ~ 1.7 G/cm3 | Gloss: | 108GU (60°) |
| Baking Time: | 180°C/10min | Coating Craft: | Electrostatic Spraying |
| Highlight: | 1.2g/cm3 Acrylic Clear Powder Coat,Wheel Hub Acrylic Clear Powder Coat |
||
Qualicoat Acrylic Transparent Powder, 180 Degree Cure Wheel Hub Cover Powder Coating
◎ Introduction
The wheel hub is an important driving part of automobile. With the development of the national economy and the continuous increase of people's demand for automobiles, the quality and performance of the automobile wheel hub have always attracted people's attention. Compared with traditional automobile steel, the density of aluminum alloy is lower. Under the same conditions, vehicles using aluminum alloy wheels have low inertial resistance and are not easily deformed during driving, which is conducive to improving the acceleration performance of the vehicle, reducing the energy loss caused by the vehicle during the braking process, and reducing fuel consumption. At the same time, the heat dissipation performance of aluminum alloy is about 3 times that of steel, which can effectively improve braking efficiency, reduce the probability of tire blowout, improve the service life of tires, and effectively ensure driving safety. Various advantages have gradually replaced traditional steel wheels with aluminum alloy wheels.
Although aluminum alloy wheels have many advantages, there are still disadvantages that cannot be avoided: aluminum alloy wheels have high hardness and insufficient toughness. Difficult-to-repair scars are prone to occur when scratched by pavement stones or in a collision. The exposed metal is in direct contact with the air, under the influence of the natural environment such as oxygen, rain, and sunlight, the area of oxidation and corrosion may continue to expand, resulting in the deterioration and deformation of the hub.
The special powder for aluminum wheels developed by our company solves this problem very well. With more and more attention paid to low-carbon environmental protection and the general trend of "paint to powder", powder coatings have the environmental advantages of no VOC emissions, no solvent pollution, and recyclability, helping the automotive industry to achieve low-carbon, environmentally friendly, sustainable continuous development. At the same time, powder coatings have excellent weather resistance, corrosion resistance, and impact resistance, so there is no need to worry about the oxidative erosion of the wheels caused by road stones and steel bars, effectively prolonging the service life of the vehicle.
◎ Application Range
Acrylic transparent overcoat powder coating series is based on acrylic resin and saturated aliphatic diacid curing agent as the main base materials and can be used for electrostatic spraying of thermosetting transparent powder coatings. It is a series of products specially designed for the characteristics of light coating on the surface of the wheel hub, and can also be used in the fields of hardware bathrooms, high-end furniture, and so on.
◎ Advantages
Excellent outdoor weatherability
Excellent transparency
Excellent chemical resistance
◎Film Properties
| Properties | Test Method | Test Index |
| Apperance | Visual Inspection | The particles are uniform, dry, without agglomeration, dampness, inclusion of dirt, etc. |
| Color and Gloss | Visual Inspection | Control according to the color and gloss determined by the sample delivery, and do not allow color difference between batches |
| Hardness | GB/T 6739-1996 | ≥ H Pencil Hardness |
| Adhesion | GB/T 9286-1998 | Grade 0, 100% no shedding |
| CASS Test | GB/T 10125-2008 | 240 hours, the unilateral corrosion width at the scribed line is less than 2mm, and the adhesion requires no loss. |
| Water Resistance Test | GB/T 1733-1993 | 240 hours, no bubbles, peeling and wrinkling and obvious changes in color, gloss and softening of the coating film; the adhesion test is carried out within 20 minutes of taking out from the water, and the adhesion is required to be no loss. |
| Xenon Lamp Aging Test | GB/T 1865-2009 | 2000 hours, the gloss retention rate is greater than 80% |
◎Properties
Color: Transparent
Apperance: Flat and Smooth
Density: 1.2 ~ 1.7 g/cm3
Gloss: 108GU (60°)
Storage: Can be stored for 6 months in a dry condition below 25°C
◎Coating Parameter
Spraying Method: Electrostatic spraying.
Preheating Temperature: The workpiece can be preheated according to the workpiece condition and coating requirements.
Curing Conditions: It is recommended to bake at 180°C for 10min after spraying at room temperature, and customers can adjust it according to the site conditions.
◎Precautions
The particle size of the powder corresponding to different coating methods will be different, please make a request in advance.
Different spray thickness will affect color, gloss, appearance, etc.
There is a difference between the laboratory sample and the production line coating plate, and the customer needs to adjust the spraying parameters to meet the requirements.
◎Transportation and Storage
Carton packaging with net weight 15Kg
Non-dangerous goods, no special transport requirements
Store in a cool, dry place below 25°C
Shelf life 6 months

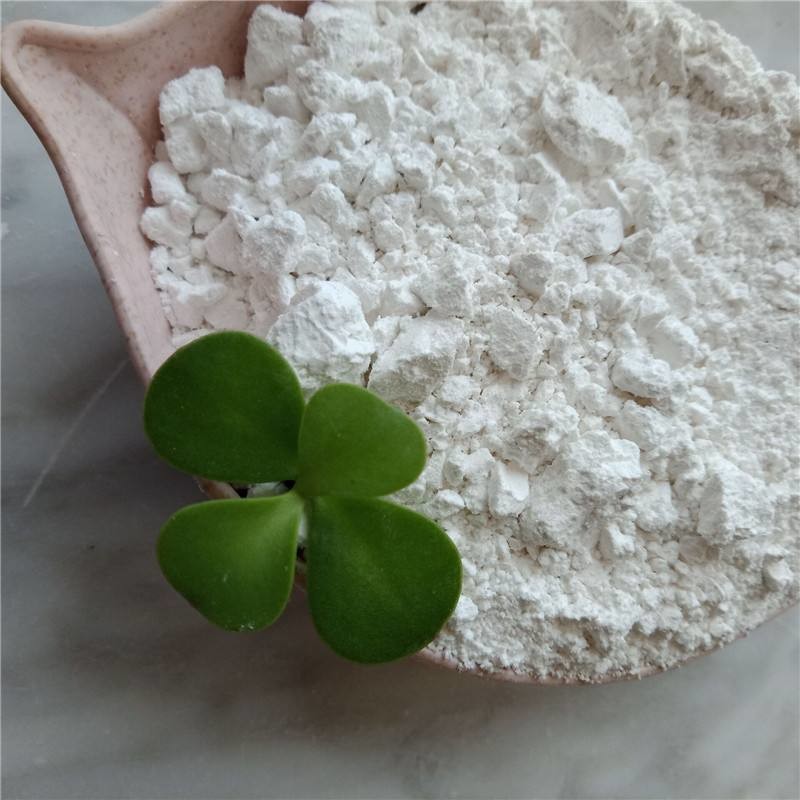

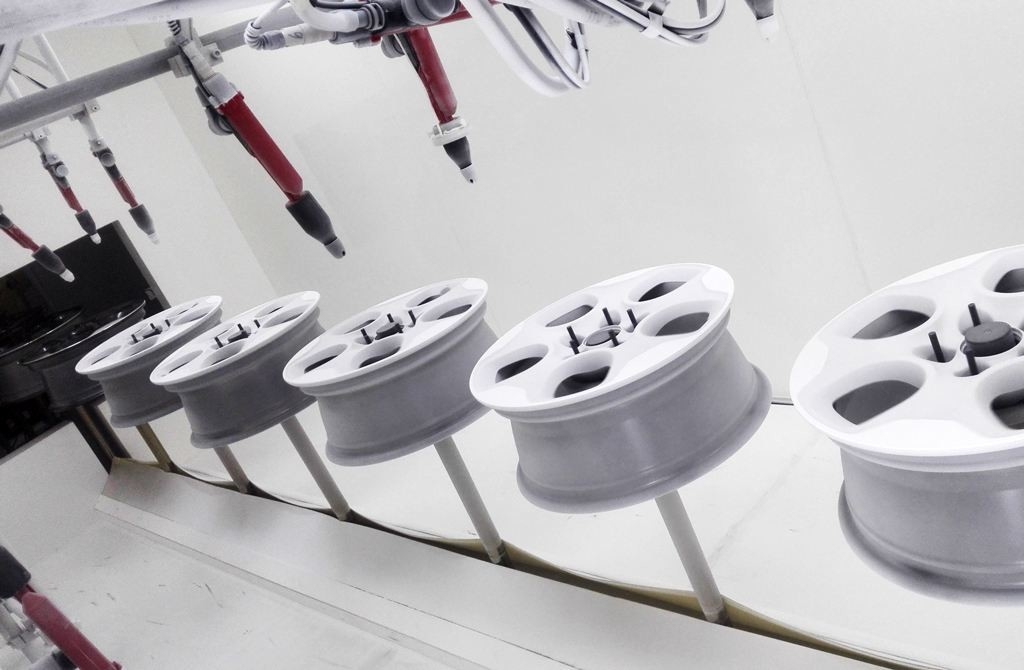

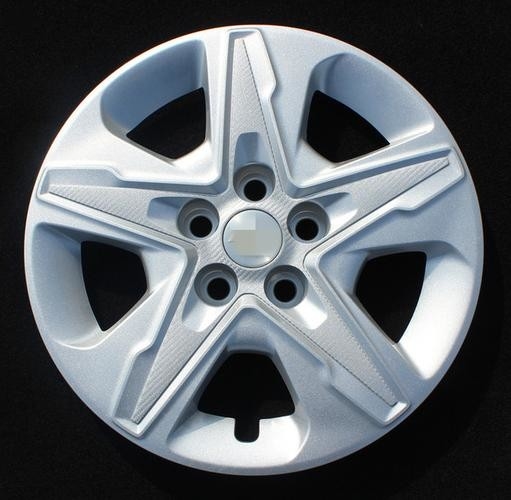

◎Product Shows
