| Place of Origin: | China |
|---|---|
| Brand Name: | KINTE |
| Certification: | Qualicoat, Reach, ROHS, 16949, ISO90001, ISO14000 |
| Model Number: | A-CL0306B |
| Minimum Order Quantity: | 100Kg |
| Price: | Negotiable |
| Packaging Details: | 15kg per carton |
| Delivery Time: | Within 10 working days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 500 tons per month |
| Color: | Transparent | Apperance: | Smooth And Flat |
|---|---|---|---|
| Advantages: | Excellent Outdoor Weatherability And Excellent Chemical Resistance | Application: | Glossy Transparent Powder For Wheel Hub Cover |
| Product Type: | Acrylic Type | Curing Conditions: | 180°C/10min |
| Gloss: | ≥ 100% | Spraying Method: | Electrostatic Spraying Method |
| Highlight: | Transparent Wheel Powder Coating,Acrylic Type Wheel Powder Coating |
||
Excellent Outdoor Weatherability, Outstanding Transparent Wheel Powder Coating
◎ Introduction
Powder coatings have achieved great success since their application in the automotive field in the early 1970s, especially in recent years. On the one hand, it greatly reduces the amount of VOC, and on the other hand, it greatly improves the utilization rate of the coating. At present, automotive powder coatings are mainly used in the coating of automotive parts, such as automotive engines, aluminum wheels, chassis, filters, joysticks, mirrors, wipers, and horns.
There are epoxy, epoxy-polyester, polyester, polyurethane, and acrylic powder coatings for automobiles. With the improvement of technology and the improvement of the performance of powder coatings for automobiles, it can now meet the various requirements of auto parts coating, such as appearance, weather resistance, chemical resistance, scratch resistance, UV resistance Optical properties, etc. With the rapid growth of passenger cars in recent years, powder coatings for aluminum wheels have developed rapidly.
At present, the powder coatings for aluminum wheel hubs in the market are mainly wheel base powder and glossy transparent powder, while the glossy transparent powder is mainly polyester type, GMA acrylic type, etc. The acrylic powder varnish sprayed on the surface of the aluminum wheel hub must meet the requirements of impact resistance, acid rain corrosion resistance, temperature change resistance, and ultraviolet resistance.
This series of products are mainly based on acrylic resin and saturated aliphatic diacid curing agent and can be used for thermosetting transparent powder coatings for electrostatic spraying.
◎ Application Field
External protective or decorative coatings for aluminum wheels, bicycles, sports equipment, metal furniture, metal, and pearlescent effects, and mixed colors.
◎ Advantages
Excellent outdoor weatherability
Excellent transparency
Excellent chemical resistance
◎Film Properties
| Properties | Test Standard or Method | Test Index | |
| Impact Resistance | ISO 6272 | GB/T 1732-1993 | ≥ 30Kg·cm |
| Gloss (60°) | ASTM D5965-96 | / | ≥ 100% |
| Adhesion (Cross-Hatch) | ISO 2409 | GB/T 9286-1998 | Grade 0 |
| Pencil Hardness | ASTM D3363 | GB/T 6739-1996 | H-2H |
| Salt Spray Test | ISO 7253 | GB/T 1771-1991 | ≥ 500h |
| Damp Heat Test | ISO 6270 | GB/T 1740-1979 | ≥ 1000h |
| Light Aging Test (QUV B313) | ASTM G151 | / | 240h |
| CASS (240h) | ISO 3770 | GB 6460-1986 | 240h |
◎Properties
Color: Transparent
Apperance: Smooth and Flat
Density: 1.2 ~ 1.7 g/cm3
◎Coating Reference
Spraying Method: Electrostatic spraying.
Preheating Temperature: The workpiece can be preheated according to the workpiece condition and coating requirements.
Curing Conditions: It is recommended to bake at 180°C for 10min after spraying at room temperature, and customers can adjust it according to the site conditions.
◎Precautions
The particle size of the powder corresponding to different coating methods will be different, please make a request in advance.
Different spray thicknesses will affect color, gloss, appearance, etc.
There is a difference between the laboratory sample and the production line coating plate, and the customer needs to adjust the spraying parameters to meet the requirements.
This powder coating needs to be isolated from other coating lines, which is easy to interfere with and contaminate other materials.
◎Transportation and Storage
Carton packaging with net weight 15Kg
Non-dangerous goods, no special transport requirements
Store in the freezer, the temperature is set to ≤ 25°C
Shelf Life: 3 months to 6 months

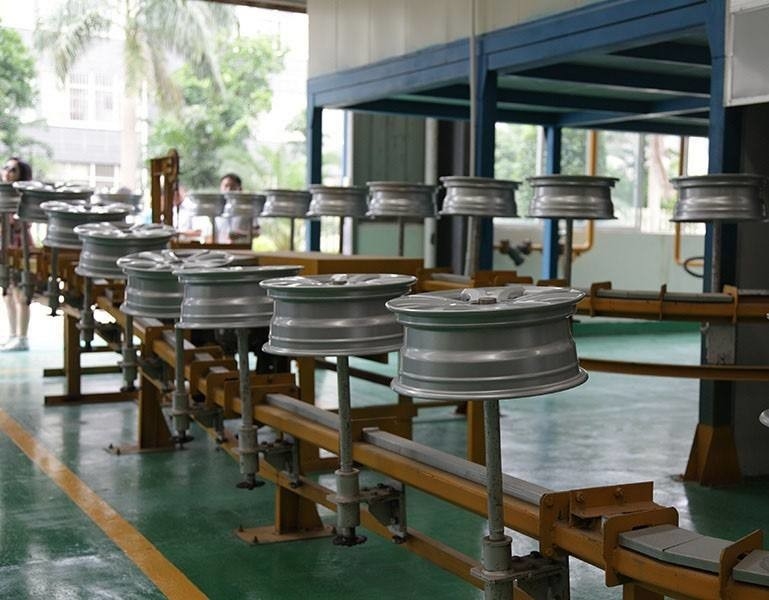

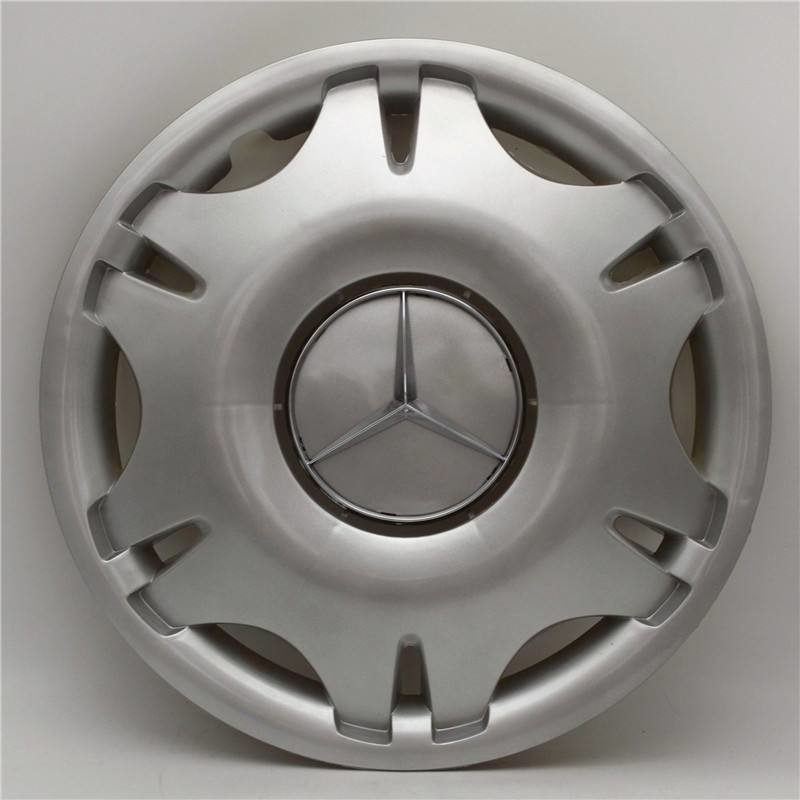

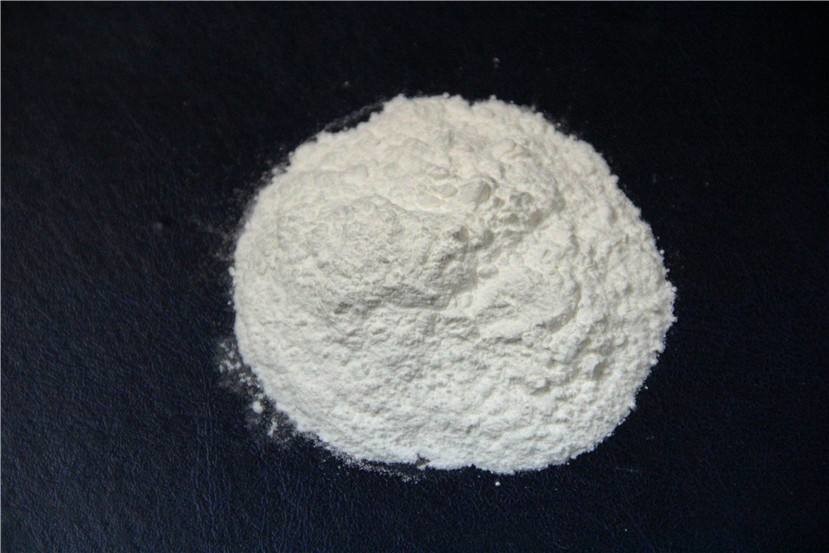

◎Product Shows
